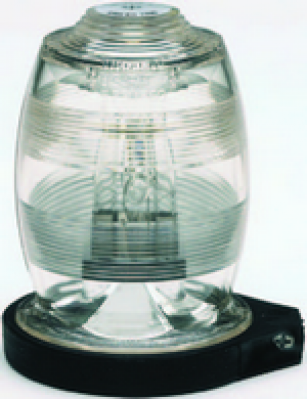

Whelen A470Aw White Strb Head

$288.95/Each
Part# 11-03277
MFR Model# 01-0770019-19
MFG Model #DescriptionPart No.
A470AWStandard assembly, white lens
(FAA/PMA)
11-03277

Overview

A470A series remote strobe light assembly is compatible with all Whelen power supplies. It can be installed on the fuselage or the vertical fin. The unique polycarbonate optic lens and reflector design, re-directs stray light rays into the horizontal plane to provide the maximum 360º of uniform light coverage possible. Available in three different lens colors, aviation red, aviation white and split aviation red/white. Available in radio-shielded configurations. All assemblies require either the model H102 or H103 mounting adapter.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Drawing Number: 70019
  • Weight: 0.3 lbs. (136gm)
  • Exposed Height: 3.75” (95mm)
  • Diameter: 2.5” (64mm)
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Make sure you drill the hole in the bottom of the strobe if it is to be mounted on the bottom of aircraft. I made the mistake of not drilling and had to buy a new one due to water collecting in the unit.

Kevin M
September 9, 2018

Whelen lighting products are good quality but grossly overpriced. And in the last 2 or 3 years the prices of many of their things like LED beacons have increased 30% or more.

P
May 4, 2021

This item should come with a new connector for the wires, my did not

Tom
October 14, 2017

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: When installing the A450 light assembly what adapter do I require? I am replacing a Whelen Model 70509,

The H102 adapter is used for flush mounting, and the H103 is used for mounting in a standard 3-3/4" rotating beacon hole.

Q: Does this kit come with the curled strobe tube bulb or is this a different type of strobe bulb? My current install that I need to replace has a curled strobe tube.

Yes, this model A470A includes the curly bulb type. If you keyword search A470, the first result will be a parts breakdown which will show you the bulb you will receive.

Q: We are looking for the power supply for the Whelen A470A series. Is there a specific power supply that will work for this unit?

Per the manufacturer, no, this unit is capable of running off of most power supplies. There is no one specific power supply for it. For example, WHELEN HDACF POWER SUPPLY (part # 11-16218) would work fine.

Q: Is the Whelen A450 light FAA-PMA or STC approved?

Yes, this is PMA approved.

Q: Does the A470ADS Whelen strobe require a separate power pack or can it be wired direct to the 12 v aircraft bus bar?

It would require a power supply.

Q: Does the flash tube assembly come with the AMP connector already attached or does it need to be purchased separately?

This part comes with the amp connector installed.
