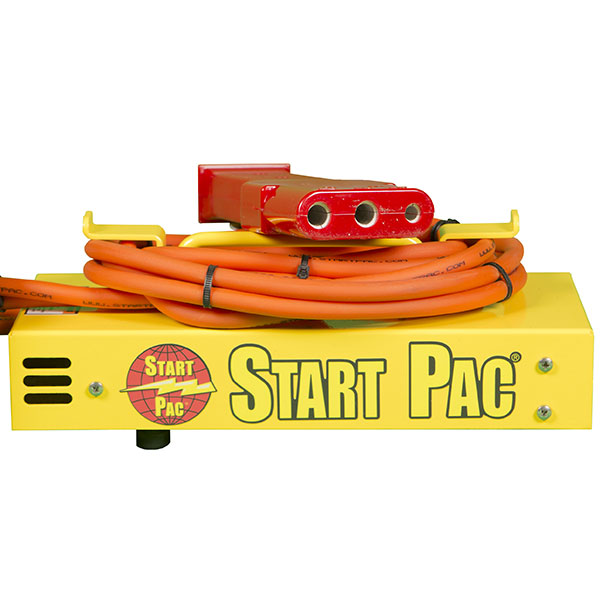

START PAC 53050 POWER SUPPLY 28.5V 50 AMP

$1195.00/Each
Part# 11-06833
MFR Model# 53050-24

Overview

This START PAC®’s maximum amperage output is 50 amps which is more than adequate for powering up various systems such as GPS and avionics programming. It is also an excellent choice for powering the aircraft’s maintenance equipment bypassing the aircraft battery and thus preserving it from unnecessary wear. This means that the on board aircraft battery is conserved for starting only. The environmentally responsible, low VOC powder coating protects the unit from wear, tear and poor weather conditions.

Features

  • Smallest and lightest portable aircraft power supply in the world
  • No duty cycle, clean continuous power
  • Resistant aluminum case with environment friendly, low VOC durable powder coat finish, easy to handle, built for heavy duty usage
  • 8'/2.4m aircraft cable built in
  • If overloaded, the unit will trip off and reset itself after a short period of time

12/14V Specifications

Maximum Continuous Current output 50 A
DC voltage output 14.2 VDC
AC voltage input 90 - 240 VAC
AC current input at maximum DC power output 7 A @110VAC3.5 A @220VAC
Phase Single
Forced air-cooling Yes
Over current protection Yes
Over voltage protection Yes
Over temperature protection Yes
Complete weightwith aircraft cables 7lbs / 3kg
DimensionsLength x Width x Height 113/4″ x 5″ x 4″30 x 13 x 10 cm

24/28V Specifications

Maximum Continuous Current output 50 A
DC voltage output 28.5 VDC
AC voltage input 90 - 240 VAC
AC current input at maximum DC power output 14 A @110VAC7 A @220VAC
Phase Single
Forced air-cooling Yes
Over current protection Yes
Over voltage protection Yes
Over temperature protection Yes
Complete weightwith aircraft cables 10lbs / 4.5kg
DimensionsLength x Width x Height 14″ x 5.25″ x 5.5″36 x 13 x 14 cm
