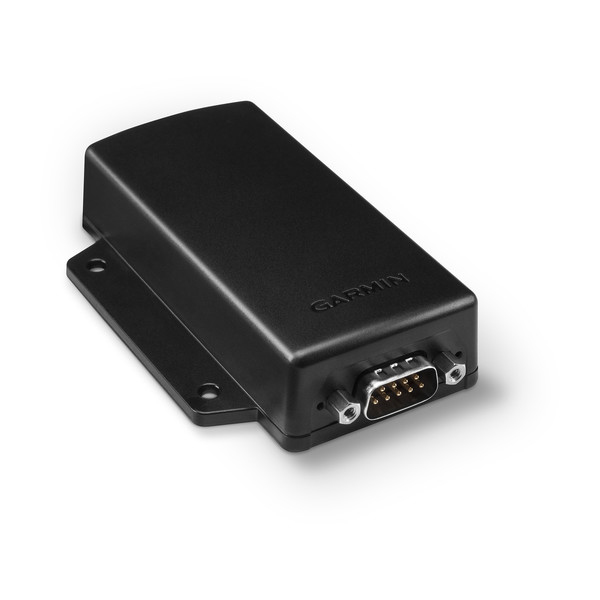

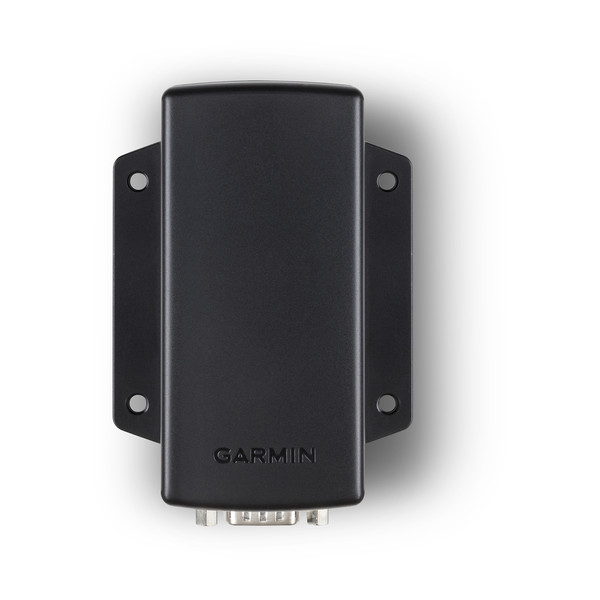

Garmin GMU 11 Magnetometer 010-01788-01 FAA-PMA

$383.00/Each
Part# 11-15418
MFR Model# 010-01788-01

Overview

Digital 3-axis Magnetometer Heading Sensor
  • Small, lightweight, cost-effective source of magnetic heading reference
  • Provides accurate 3-axis sensing of the Earth’s magnetic field for use by Air Data, Attitude Heading Reference System (ADAHRS) to determine aircraft heading
  • Integrates with G3X™, G3X Touch™ and G5 series electronic flight displays
  • Usable for both experimental and certificated aircraft installations with the G5 electronic instrument serving as DG/HSI and/or attitude indicator
  • Installs easily; mountable in 4 cardinal compass directions
GMU 11 is an affordable, microprocessor-based magnetometer. It can be used to accurately sense the Earth’s magnetic field alignment and provide this data to compatible ADAHRS processors for use in referencing aircraft magnetic heading. In essence, the magnetometer acts as an electronic compass, showing the ADAHRS which direction the aircraft is facing in relation to magnetic north.

Unlike conventional flux valve systems, which detect only the horizontal component of the Earth’s magnetic field, the GMU 11 magnetometer provides full 3-axis vector measurements for the most precise digital indication of magnetic field strength and direction.



California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Small, lightweight, cost-effective source of magnetic heading reference
  • Provides accurate 3-axis sensing of the Earth’s magnetic field for use by Air Data, Attitude Heading Reference System (ADAHRS) to determine aircraft heading
  • Integrates with G3X™, G3X Touch™ and G5 series electronic flight displays
  • Usable for both experimental and certificated aircraft installations with the G5 electronic instrument serving as DG/HSI and/or attitude indicator
  • Installs easily; mountable in 4 cardinal compass directions

Compatible Devices

  • G3X™
  • G3X Touch™
  • G5 Electronic Flight Instrument for Certificated Aircraft
  • G5 Electronic Flight Instrument for Experimental/LSA Aircraft
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Magaero L Verified Purchase

Garmin GMU 11 Magnetometer 010-01788-01 FAA-PMA

January 13, 2023

Cannot leave review of this product as I have not installed it yet.

Bill S Verified Purchase

Garmin GMU 11 Magnetometer 010-01788-01 FAA-PMA

September 29, 2021

Good price for the value-add. I hooked this up directly to a G5 (no G3X in my plane) and it worked perfectly. I *NEVER* have to set my DG anymore! Was very easy to install (and is not as sensitive to disturbances as the install manual might have you believe). I replaced my vacuum DG with this magnetometer and a G5, for about the same cost as getting a new vacuum DG!

Steve
May 13, 2020

It is so nice powering up your aircraft and not needing to dial in your heading against the wet compass. Product is worth more than its weight in gold.

Nick
January 17, 2018

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does the GARMIN G3X GMU 11 MAGNETOMETER come with a connector kit, or must the connector kit in accessories be purchased in addition to the Magnetometer?

It is not included. Please see part # 11-15066.

Q: What is the correct connector kit part number, to connect this to a Garmin G5?

The connector kit for the GMU 11 is part # 11-15066. To pair the G5 with the GMU 11, you'll need to run a 2 conductor shielded twisted pair on pins 1 and 2 of each connector. The shielding must be terminated to a ring terminal on the housing of the connector to function as a proper shield ground.

Q: I have the experimental Garmin G5 and would like to add a GMU 11 magnetometer. What is included in the GMU 11 connector kit?

The GMU 11 connector kit (Garmin pn: 011-03002-00) includes the following: cast connector backshell with hardware can bus terminator 9 pin d-sub connector 9 size 20 d-sub socket contacts

Q: I have a G5 Experimental version. The product selection is either G3X (Experimental) or G5 (Certified). Which one do I need for a G5 (Experimental)?

The GMU 11 experimental version, part number 11-15077, is the item that you will need.

Q: Where is the GMU11 device supposed to be installed in the wing?

In the g3x manual under the gmu 11 section, there are detailed recommendations as to where and how you can install this unit.

Q: I have GDU 370 AND GSU 25, are they compatible with the GMU11?

Those units are part of the G3X system, so yes they will work together.

Q: I have yet a GNS 430 WAAS in my aircraft. Must I order a GMU11 for my Garmin G5? Must I order #11-15066 cable to connect my GPS with the G5? Thanks

No you do not have to have the G5 connected to the GMU 11, however you must have the G5 connected to a certified GPS antenna. You can connect your GNS 430w to your G5(AI) via RS232.

Q: Will the battery backup on the g5 keep the GMU 11 functioning when power fails? Co-pilot independent system. Thanks Ray

No the G5 will not keep the GMU11 alive. You will need a backup power source.

Q: If I mount 2 G5's, can I use only one GMU 11 for both?

Yes only one GMU 11 is required for the setup of two G5's.

Q: What is the weight of the GMU-11 magnetometer? For weight and balance.

Approx 0.16 lbs
