Garmin Certified Dual G5 Kit with LPM AI/HSI K10-00280-51
MFR Model# K10-00280-51
FREE Shipping
Overview
|
Available for a limited time, ths dual G5 bundle saves up to $600. This kit is a great way to replace your existing mechanical gauges and have the opportunity to remove your vacuum system. This new kit consists of Attitude Indicator and HSI variants, as well as the required and popular accessories to create a complete installation. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Specifications
- Electrical: 14 or 28 VDC aircraft power
- Unit size: 3.4"W x 3.6"H x 3.0"D (86.4 x 91.4 x 76.2 mm)
- Weight: 13.3 oz (377.0 g), unit
- Display size: 3.5" diagonal (88.9 mm diagonal)
- Display resolution: 320 x 240 pixels (QVGA), LED backlit color LCD
- Receiver: High-sensitivity GPS
- Maximum indicated airspeed: 300 kts
- Altitude range: -1,400 – +30,000 feet
- Vertical speed range: ± 20,000 feet/minute
- Pitch/roll range: ±360°
- Backup battery: Rechargeable lithium-ion
- Battery life: Up to 4 hours
Documents

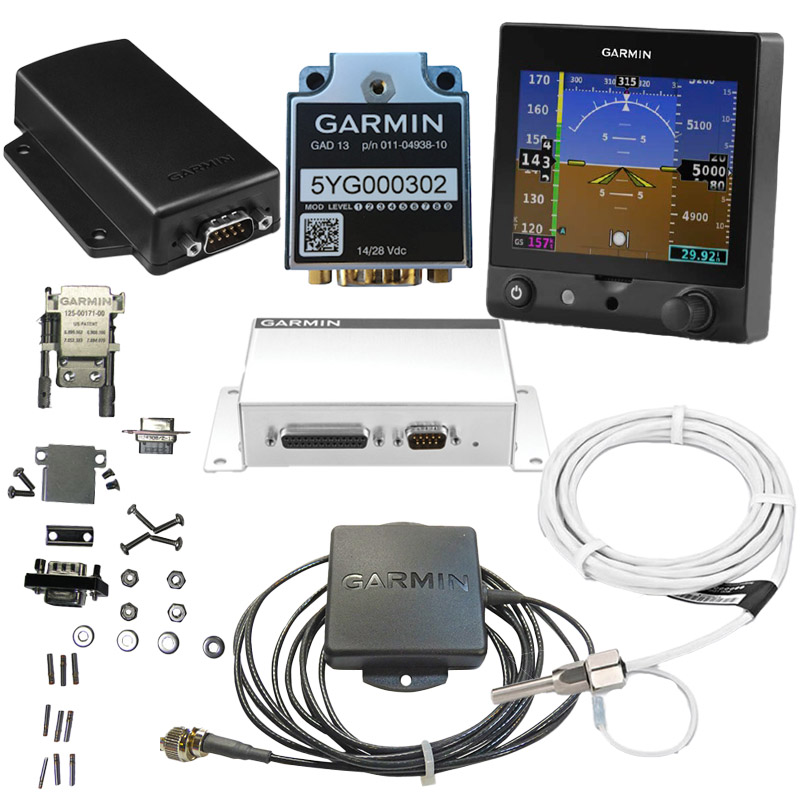

In The Box
- K10-00280-11 - Kit, G5 for Certified Aircraft, Installation Kit w/ LPM (qty 2)
- 010-12493-20 - Product Registration, G5 (qty 1)
- 010-12493-30 - microSD Card, G5 (qty 1)
- 010-01788-01 - GMU 11, PMA (qty 1)
- 011-04349-90 - Sub-Assy, GMU 11, Installation Kit (qty 1)
- 010-02203-00 - GAD 13, FAA-PMA, Unit Only (qty 1)
- 011-00978-00 - Sub-Assy,GTP59 (qty 1)
- 011-03002-10 - Connector Kit, 9 pin, w/CAN TERM, PMA (qty 1)
- 010-12444-10 - Antenna, GPS, BNC (qty 1)
- 010-01172-21 - GAD 29D, Unit Only (qty 1)
- 011-03271-00 - Sub-Assy, Conn Kit, GAD 29
