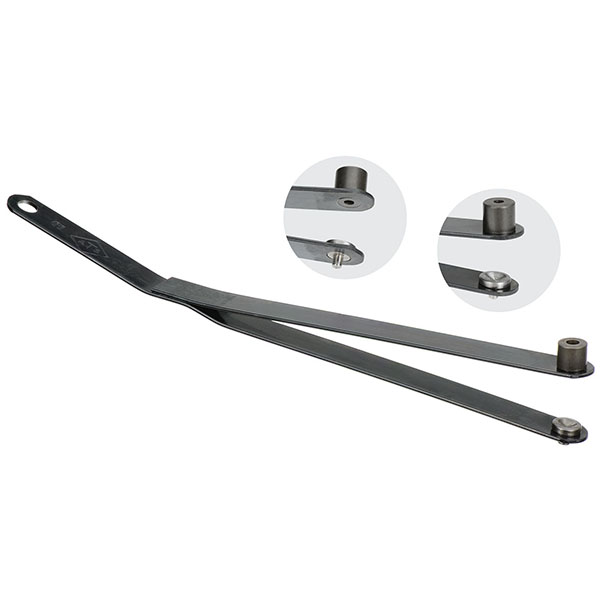

|Strap Duplicator - Bushing Type||#10, 6-1/4"||12-01494|
For drilling an accurate hole in overlapping sheets. The Bushing type duplicator is used by sliding the end with the pin between the sheets and locating the hole to be duplicated from inside.

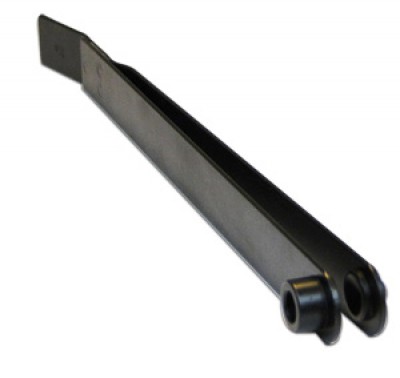

P/N 12-01498 is pictured.
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Excellent budget tool. Very well made, precise and has a great finish. Id recommend this to anyone.
Works as it should. A very handy item to have in the tool box.
Works great. Easy to use and accurate.
worked great. no issues with the first use
Great for what it is intended!
Great when you need it!
I ordered both types of duplicator straps and they were delivered 4 days later using standard postal service. Excellent service and first rate items.
Worked as advertised, very pleased
Worked great, just what I wanted
Worked well for drilling holes through new Piper Dorsal Fin. However, for holes closer to a raised area, I had to grind the lip off. Otherwise it worked well.
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The # represents the size drill bit used for this product.
Yes, that dimension is the length.
You would want to use one of them designed for the #30 bit. #30 measures .1285 which is just over 1/8".
They are listed by the drill number you would use for the rivet. 3/32 would be a #40, 1/8 would be a #30, and 5/32 would be #21.
