Two Lug Plate Nut Drill Jig 10-32

$56.95/Each
Part# 12-04792
MFR Model# NPJ518C
Mfr. PNNut Thread
Reference
(C) Hole
Spacing
(J) Hole
Spacing
(P) Pilot
Diameter
(K) Drill
Size
Part Number
NPJ518C10-320.3440.6880.1910#4012-04792

Overview

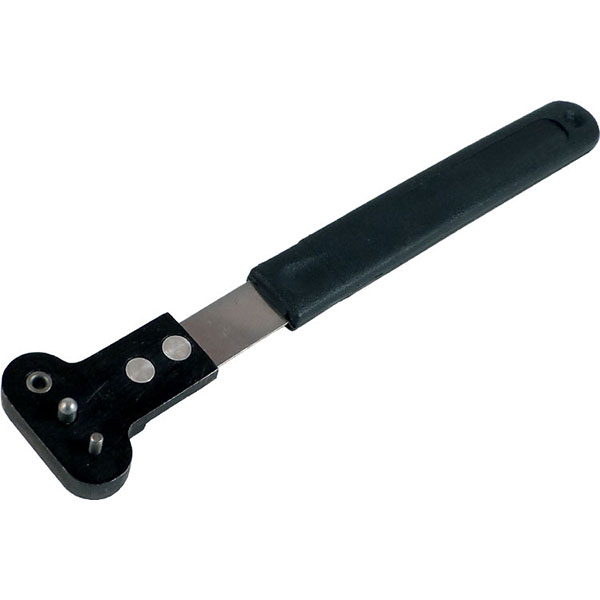

Two-Lug Double Wing Standard Nut Plate Jig (DWS).

Two-lug double wing standard nut plate jigs are designed to facilitate accurate rivet hole drilling for standard plate nuts (also known as Anchor Nuts Or Nut Plates), Omega Technologies' hand-held nut plate jigs are manufactured to precise tolerances and include drill bushings to reduce wear and assure consistent hole-spacing. Each tool features an ergonomically designed handle with a flexible stainless spring blade, allowing for clearance while the jig is in use.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Made & works well.

Zygmunt S Verified Purchase

Two Lug Plate Nut Drill Jig 10-32

July 6, 2024

Worked perfectly,, will be saving many man hours on Zodiac build project

Russ K Verified Purchase

Two Lug Plate Nut Drill Jig 10-32

August 13, 2022

Works perfectly

John E Verified Purchase

Two Lug Plate Nut Drill Jig 10-32

February 12, 2022

The main pins were a bit tight so a little difficult to remove after drilling nutplate holes.

Peter D
April 9, 2020

Good quality. Made the job easy.

Andrew M
November 26, 2017

Product description should mention that this tool is for only a certain style of nut plate. Thankfully did a test piece first. Rivet hole span is wider than the nut plates that came with the Zenith kit.

Richard J Verified Purchase

Two Lug Plate Nut Drill Jig 10-32

March 26, 2022
