Two-Lug Plate Nut Drill Jig

From $41.50 to $42.75
Mfr. PN Nut Thread
Reference
(C) Hole
Spacing
(J) Hole
Spacing
(P) Pilot
Diameter
(K) Drill
Size
Part Number Price Buy
NPJ518A6-280.3440.6880.1390#40
12-04790
$41.50
Quantity
NPJ518B8-320.3440.6880.1640#40
12-04791
$41.50
Quantity
NPJ518C10-320.3440.6880.1910#40
12-04792
$41.50
Quantity
NPJ518D1/4-280.3441.0000.2480#40
12-04793
$42.75
Quantity
Subtotal $0.00
Add to Wishlist

Overview

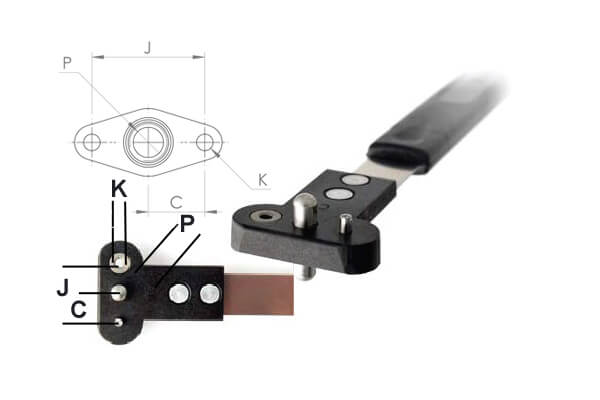

Two-Lug Double Wing Standard Nut Plate Jig (DWS).

Two-lug double wing standard nut plate jigs are designed to facilitate accurate rivet hole drilling for standard plate nuts (also known as Anchor Nuts Or Nut Plates), Omega Technologies' hand-held nut plate jigs are manufactured to precise tolerances and include drill bushings to reduce wear and assure consistent hole-spacing. Each tool features an ergonomically designed handle with a flexible stainless spring blade, allowing for clearance while the jig is in use.
