Matco Centrifugally Cast Wheels External Caliper W51L

$783.00/Pair
Part# 06-01710
MFR Model# WHLW51L

Overview

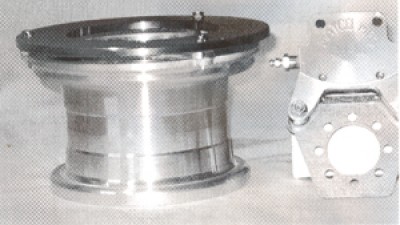

W51L
MATCO mfg produces a superior 5 inch wheel and brake assembly for use with aircraft requiring less than 1420 lbs per wheel. This model uses 1.25 inch TAPER/ROLL bearings. (Check the product comparison table for other bearing and caliper configurations).


Dimensions

The W51L is a 5 inch wheel with 4.6 inch width with an additional 1.23 inch caliper spacing. Bearing spacing is 3.084 inches and axle spacing is 1.285 inches. The total weight of this wheel and brake assembly is 6.6 pounds. The bearing axle diameter is 1.25 inches.


Performance
The W51L is designed for the following standards:
Static Capacity: 1420 LBS
Load Limit: 4260 LBS
Maximum Accelerate/Stop Kinetic Energy: 189604 ft-lb
Torque Rating (@450 PSI): 1988 in-lb
Product Comparison Table
