Guardian Avionics Aero 452-201-011

$635.00/Each
Quantity
Add to Wishlist
Part# 13-06918
MFR Model# 452-201-011

Overview

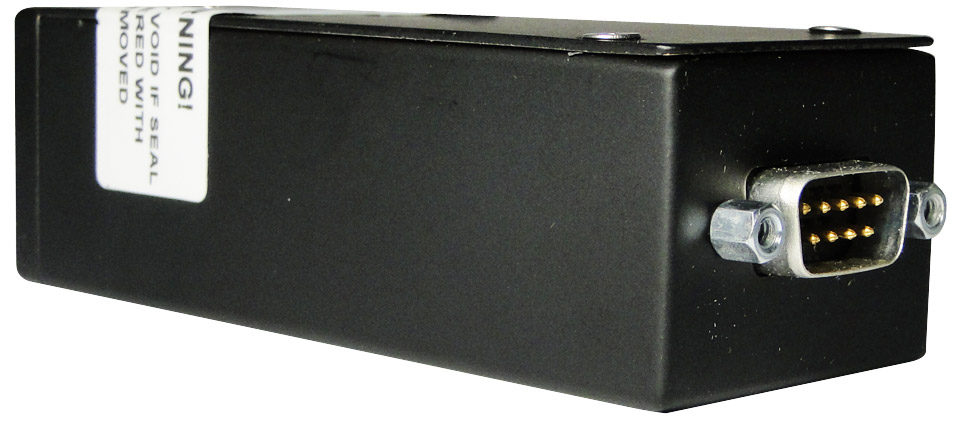

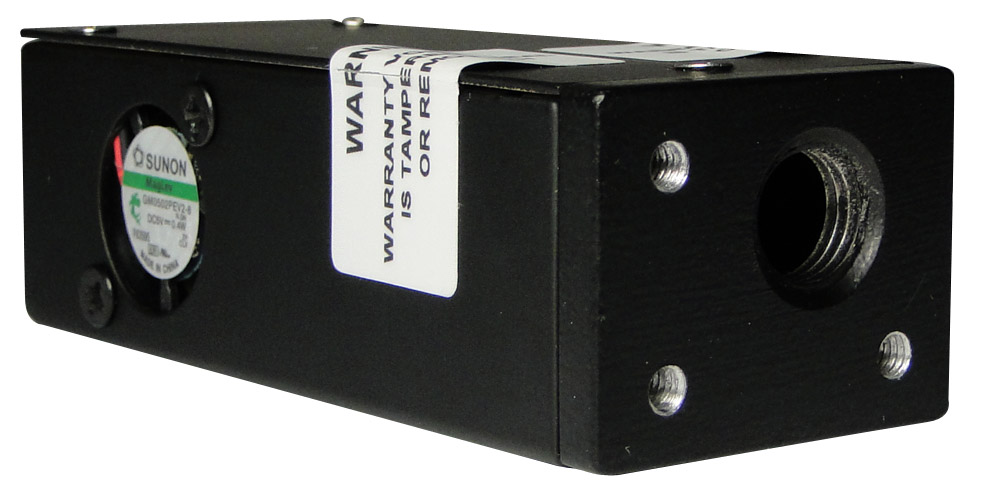

Aero 452-201-011 is the first TSO certified remote-mountable Carbon Monoxide detector for use in General Aviation. This unit is a derivative of Aero 452 (Panel Mount). This unit comes standard with remote re-set switch and a remote light and can be installed behind a panel.

This unit is pre-wired for connecting to an external annunciator warning lamp on your panel. Different light models can be purchased separately.


California Prop 65 Warning Symbol

WARNING: The product may contain and/or expose you to a chemical(s) or substance(s) which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. www.P65Warnings.ca.gov

Specifications

  • Input Power: 14V or 28V DC
  • Power Usage: Less than .25 Watts
  • Temp Range -20 deg C to 55 deg C
  • Inspection: Each Unit 100 % tested.
  • Humidity: 5 % to 95 % RH (non-condensating)
  • Circuit Breaker: 2 Amp
  • Design: Meets TSO-C48A
  • Weight: 3.5 Oz
  • Sensor: Tested to 25,000 Ft
  • Calibration: 100 and 500 PPM
  • Ouput: Dual Relay Output for Panel Warning light / Annunciator
  • Alarm: Between 50-70 PPM in less than 5 minutes.
