Aeroweigh Aw-3-30Hh Handheld Wireless Aircraft Weighing System

$10838.00/Each
Quantity
Add to Wishlist
Part# 12-05423
MFR Model# AW-3-30HH

Overview

Aeroweigh AW-3-30HH Wireless aircraft weighing equipment designed for turbo props and light jets up to 10,000 lbs per jack point, wireless operations via Hand Held Transceiver with built in antenna, 3 each wireless 10,000 lb top of jack aircraft scales, standard one inch jack mounting, calibrated with OEM NIST traceable calibration, ready to use as received.

This is a helicopter, small turbo prop and light jet aircraft weighing system. One of the lightest aircraft scales available of any aircraft weighing kits on the market.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Solid stainless steel top of jack load cells, each cell is capable of up to 10,000 lb and reads in a 1 lb count.
  • 300ft range or more, operations and read out via the hand held transceiver which is about the size of a large cell phone, this is a standard scale system with read out showing total weight with individual channel displays.

Specifications

  • 10,000 lb per cell
  • Wireless operations
  • 2.4 Ghz spread spectrum wireless aircraft weighing system
  • Standard top of jack mount.

Benefits

  • Light weight for its capability, easy to ship and use, high quality at lower cost, no cables or power cords required.
  • Full wireless, no cables, hand held runs on AA batteries capable of system operations for over 300 hours of use.
  • Batteries are field replaceable and available anywhere in the world. Solid stainless cells with mounting studs and cell tops.
  • Pack up case is included with wheels and fold out handle.

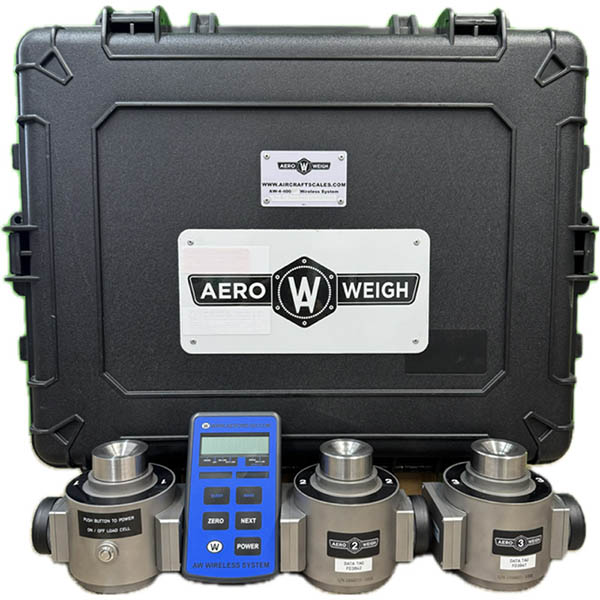

In The Box

  • 1- Each hand held transceiver
  • 3- 10K top of jack load cells
  • 1- Wireless modules
  • 1- 1" inch mounting studs
  • 1- Roll and fold case with 2.2 lb foam liner.

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: How much to recertify this unit? Does it come with certification?

This does come with certification and the cost to recert is currently $489.00 through the manufactuer. This price is current but it is subject to change.
