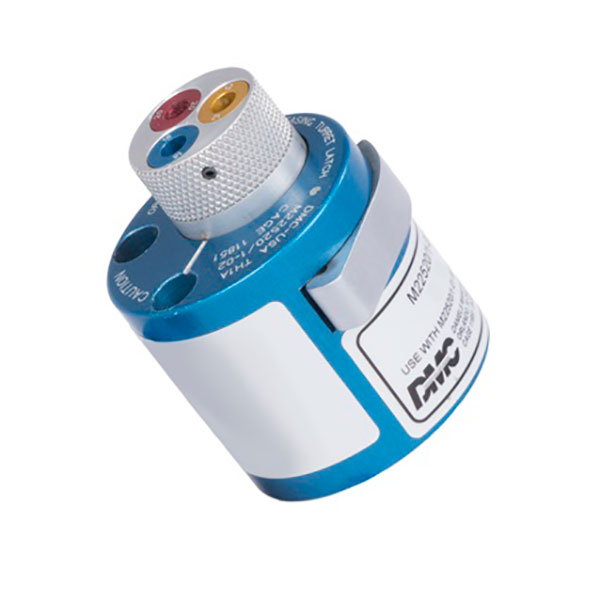

DMC CRIMP TOOL TURRET HEAD ASSEMBLY

$144.75/Each
Quantity
Add to Wishlist
Part# 11-12197
MFR Model# TH1A

Overview

DMC AF8 M22520/1-02 Turret Head.

Qualified to MIL-DTL-22520/1* and AS22520/1*

M22520/1-02 (TH1A) turret head is used with the M22520/1-01 (AF8) tool frame and adapts the tool frame to a particular application. The data plate on each turret head designates which contacts the turret accommodates and suggested selector depth settings for the wire size being used.

Specifications

  • Weight: 0.25 LBS
  • Military Part Number: M22520/1-02
