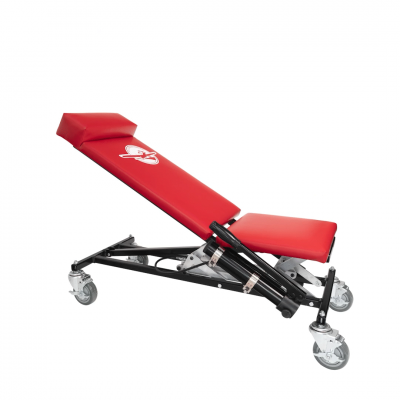

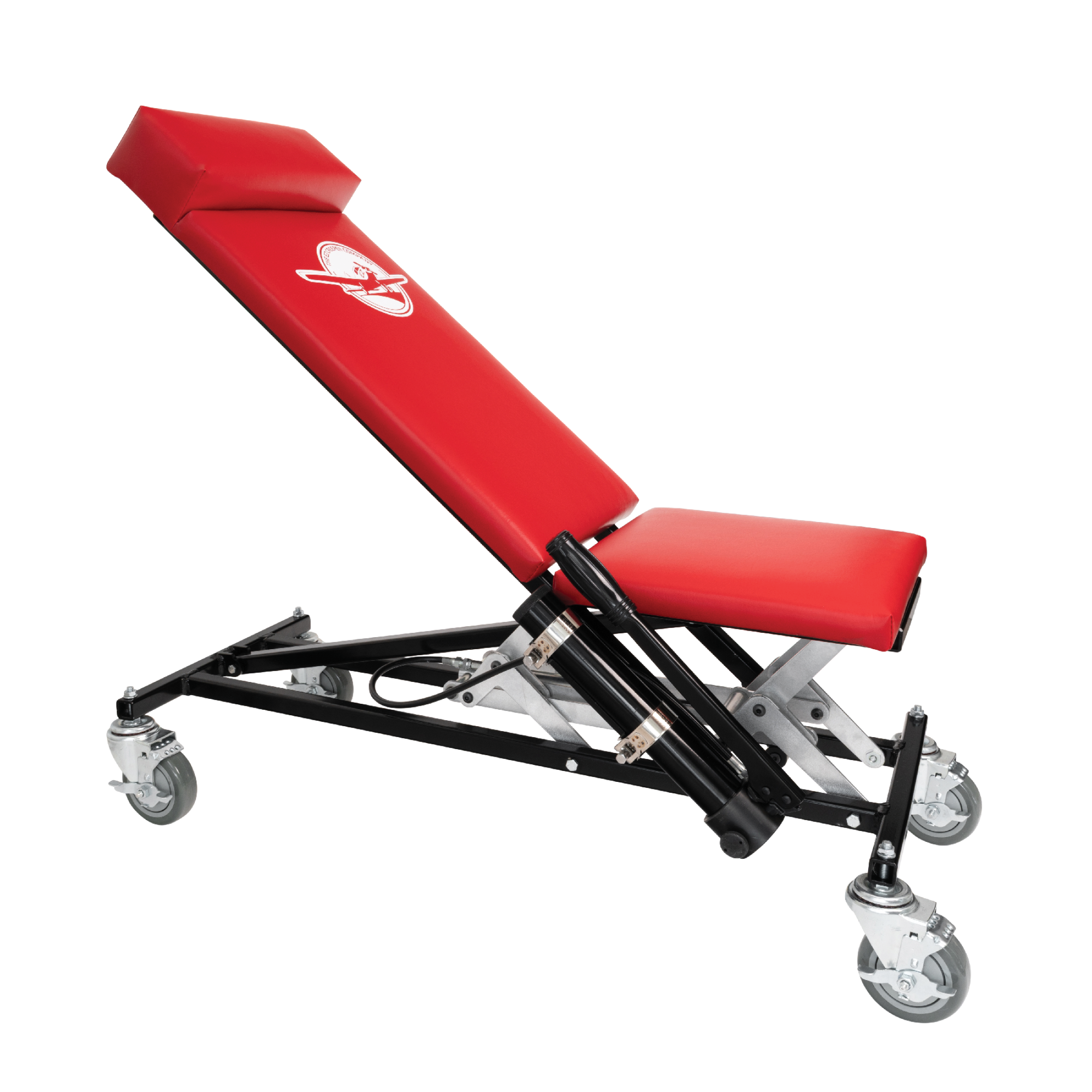

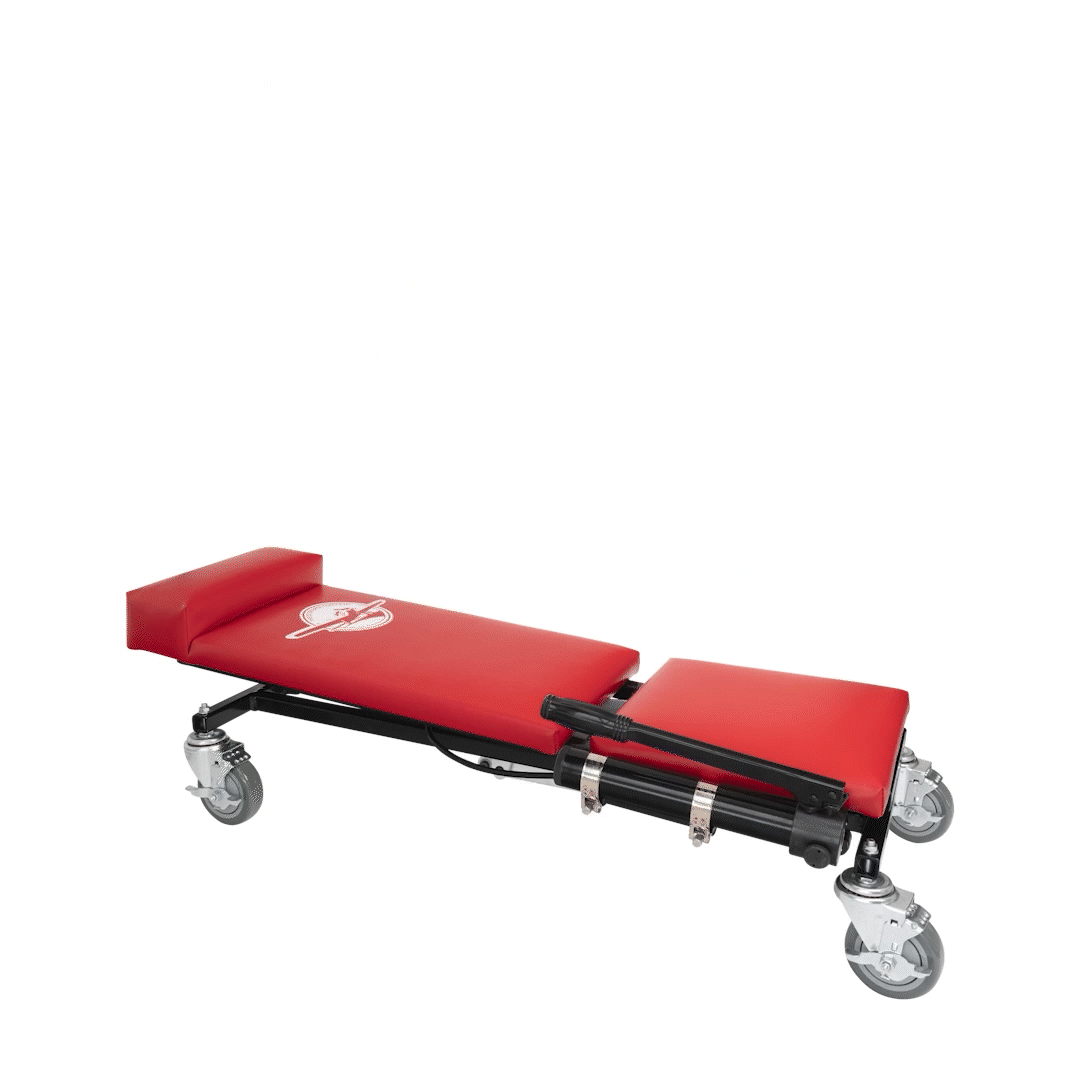

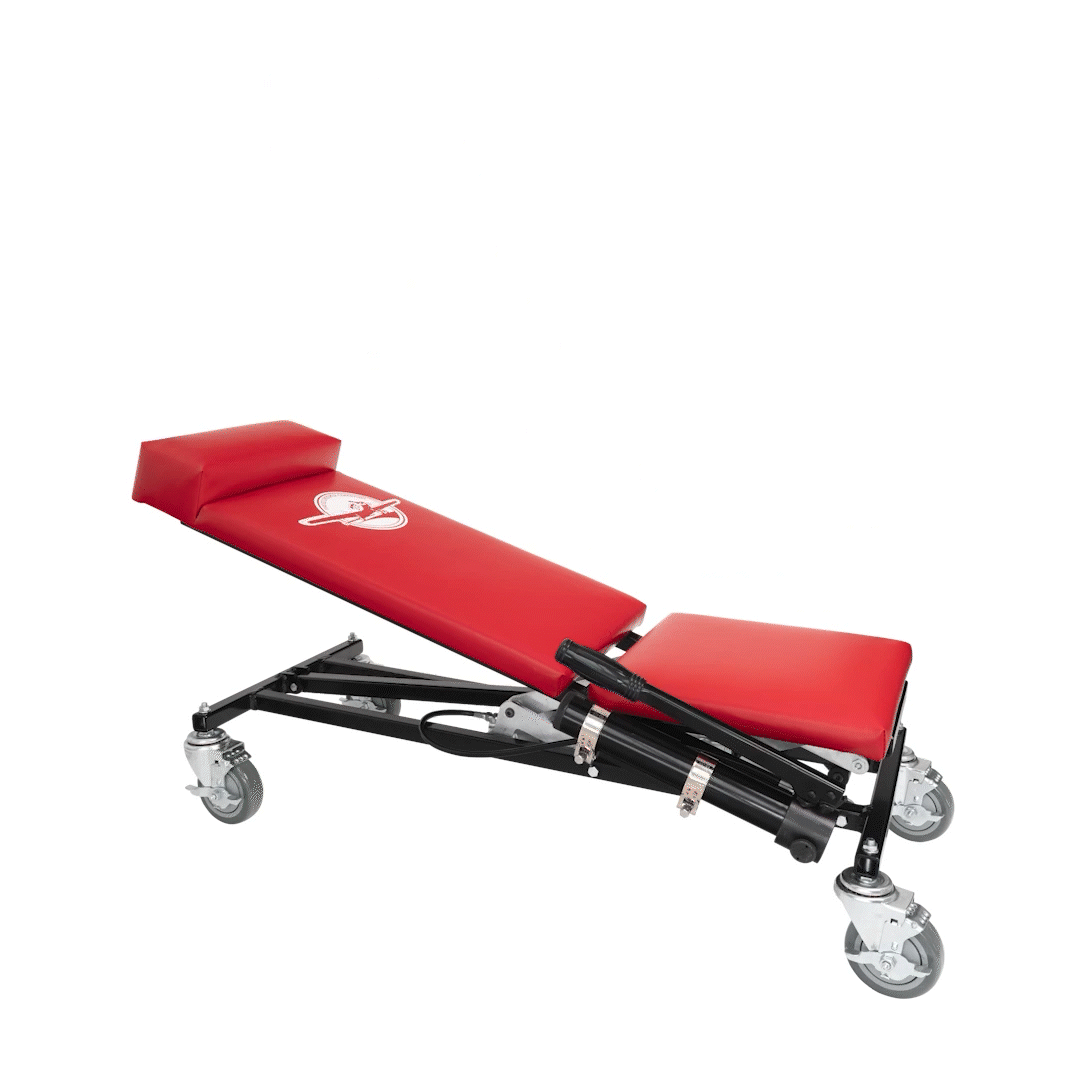

Ez Creeper - Hydraulic Creeper

Select Model:
3-Inch TPR Casters4-Inch TPR Casters5-Inch TPR Casters2-Inch TPR Casters3-Inch TPU Casters4-Inch TPU Casters
Quantity
Add to Wishlist

Overview

The Ez Creeper Model H is the premier hand-powered hydraulic aviation creeper, designed specifically to eliminate technician fatigue during under-airframe maintenance. Featuring a lightweight 32 lbs frame, 110° ergonomic backrest recline, and effortless single-hand hydraulic elevation from 7” to 16” – without relying on electricity or batteries - the Model H delivers precise positioning and maximum productivity for MROs and line maintenance crews. Fully powder-coated frame for fluid resistance and built to withstand demanding shop environments.

Upgrade your aviation workshop with the Model H Hydraulic Aviation Creeper – ergonomically engineered to protect your back, shoulders, and knees while delivering precise positioning.


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

Ergonomically Engineered for Joint & Back Protection: Designed specifically to eliminate body strain, lower back fatigue, and joint pressure during long hours under aircraft bellies, wing roots, and nacelles.
Hand-Powered Hydraulic Elevation (7” to 16”): Effortless single-hand hydraulic pump allows micro-adjustments in working height while lying down – without relying on electricity or batteries.
Integrated Seat & Backrest Platform: The seat and backrest lift together in a single synchronized motion, providing continuous posture support across the entire height range.
Heavy-Duty High-Strength Framing: Built with structural-grade framing engineered for high rigidity and stability, rated to support a robust 250 lbs static load)
Chemical-Resistant Finish & Comfort Padding: Features a chemical-resistant industrial powder-coated frame and fluid-resistant padded vinyl cushions that withstand fuel, hydraulic oils, and harsh solvents.
360° Heavy-Duty Locking Casters: Smooth-rolling swivel casters navigate easily over expansion joints, extension cords, and hangar debris, with integrated brakes to secure your position while working.

Maintenance & Care

  • Clean with mild detergent; avoid abrasive materials
  • Inspect casters, and frame for wear before each use
  • Tighten loose fasteners as needed

Specifications

  • Height Elevation Range: 7” to 16” ground clearance with standard 3” casters
  • Static Load Rating: 250 lbs
  • Lift Mechanism: Manual hydraulic hand-pump (No power/batteries required)
  • Hydraulic Fluid Type: ISO VG 15 Anti-Wear Hydraulic Oil
  • Frame Finish: Chemical-resistant industrial powder-coat
  • Upholstery: Fluid-resistant, high-density vinyl comfort padding
  • Casters: 2”, 3”, 4”, and 5” options (Heavy-duty 360° swivel with locking brakes)
  • Patent / Origin: U.S. Patent 9,193,064
