Loos & Co Locoloc Go-No Go Sleeve Gauge

$14.50/Each
Quantity
Add to Wishlist
Part# 13-03814
MFR Model# GA-1P

Overview

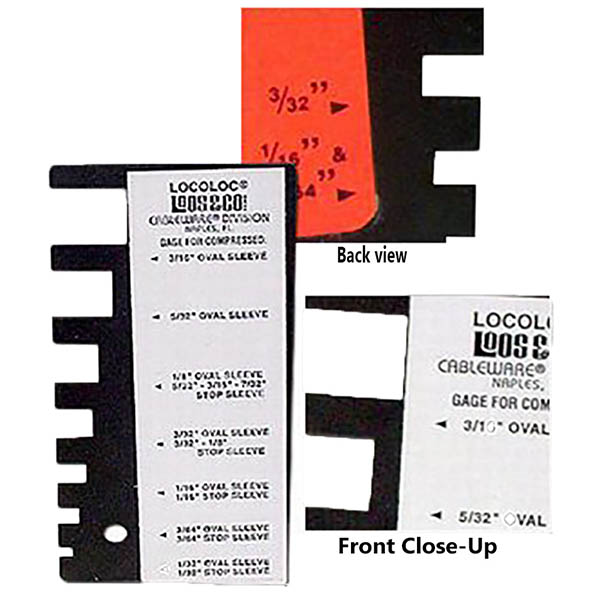

To assure proper swaging of Locoloc® aluminum, copper and stainless steel sleeves with Locoloc® tools these simple, “Go” “No-Go” Gauges will determine if your tools are out of adjustment or alignment.

When the proper slot in the gauge slips over the compressed area of the sleeve after swaging then your swage is satisfactory. If the proper slot does not fit over the compressed area of the sleeve after swaging, then your tool is out of adjustment. Your cable assembly will not hold the rated breaking strength of the cable, which should be the result when oval sleeves are used to form a loop or eye in a cable assembly.

Stop sleeves must also be properly compressed and gauged to reach their rated loads which is 1/32 to 5/16 the breaking strength of the cable, depending on cable diameter.

The Locoloc® sleeve gauges will measure all oval or stop sleeves used on 1/32″ up to and including 5/16″ diameter cable.

GA-1P – Gauges 1/32″, 3/64″, 1/16″, 3/32″, 1/8″, 5/32″, and 3/16″ oval and stop sleeves.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Reviews

works as advertised

Donald B Verified Purchase

GA-1P GO NO-GO SLEEVE GAUGE

November 13, 2023

Exactly as described. Will do the job perfectly.

Robert B Verified Purchase

GA-1P GO NO-GO SLEEVE GAUGE

March 6, 2023

Checking your own work is so important. This is the tool.

Allen W Verified Purchase

GA-1P GO NO-GO SLEEVE GAUGE

August 28, 2022

Very close tolerance an excellent go/no go gauge

Jorge L Verified Purchase

GA-1P GO NO-GO SLEEVE GAUGE

April 5, 2022

Works well

Edwin S
April 11, 2020

New products very satisfying with.

Ramon B
September 14, 2019

New products very satisfying with.

Ramon B
September 14, 2019

Would give 5 stars except the labeling on the gauge is paper, not engraved as others are. In order for the labels to remain legible I have to cover them with packing tape. Otherwise the oils and grease turn them black

Tommy L
December 17, 2018

Used a paper label for the markings. that will soon wear off and you wont know which is which.

Randall H
March 17, 2020

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can we get calibration certs with the go-no go sleeve gage #13-03814? Is there an extra charge?

Per the supplier: No certs are available for this gauge.

Q: Does this work for Nicopress sleeves as well?

Yes, this does nicopress sleeve sizes, 1/32, 3/64, 1/16, 3/32, 1/8, 5/32, 3/16

Q: One of the answers says that the gauges work with nicopress tool and sleeves. What is the number of the gauge should I purchase?

Part # 13-03814 is the correct gauge, it will work with the nicopress sleeves.
