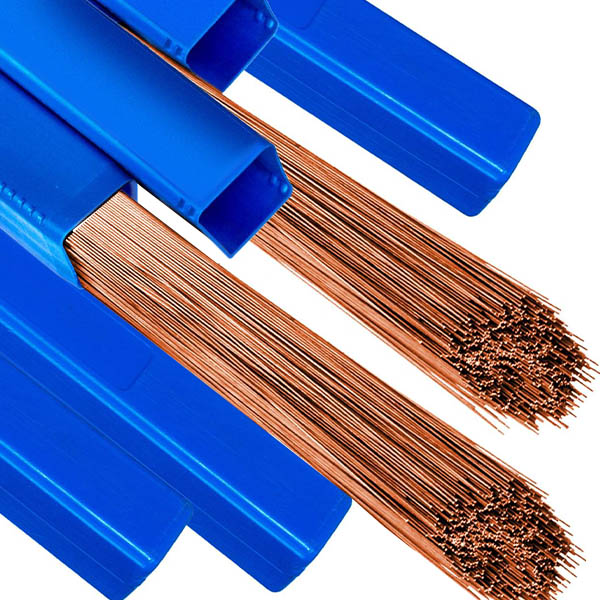

Mild Steel Alloy Er80S-D2 .045 Tig Filler Material

$9.50/Pound
Quantity
Add to Wishlist
Part# 12-00474
MFR Model# ER80SD2-045-10T

Overview

USA 80S-D2 is designed to give high strength weld son high sulfur bearing (free-machining) steels or medium carbon steels. This wire contains additional amounts of manganese and silicon which, when alloyed with 0.50% molybdenum, produces weld deposits which have high ductility, excellent impact values and tensile strengths of approximately 100,000 psi. USA 80S-D2 is commonly used on low carbon and low alloy steels such as AISI 4130 where tensile strengths provided by plain carbon steel wires are inadequate. A well balanced silicon content gives this wire superior arc stability, a low spatter level and a flat bead with excellent appearance. USA 80S-D2 produces X-ray quality, porosity free welds even over dirt, rust or mill scale.

Applications:
Farm implements, automotive parts, pipes, light-gauge steels, low alloy steels such as AISI 4130 and high yield steels such as T-1.

318" sections are packaged in 1 lb. tubes to provide you the flexibility of buying only what you need for your job.

Features

  • Well balanced silicon content gives this wire superior arc stability, a low spatter level and a flat bead with excellent appearance.
  • Produces X-ray quality, porosity free welds even over dirt, rust or mill scale.
  • This wire is commonly used on low carbon and low alloy steels.

Specifications

  • Elongation is 25%.
  • Tensile strength: approximately 100,000 psi
