Two-Lug Mini Plate Nut Drill Jig

From $54.75 to $54.75
Mfr. PN Nut Thread
Reference
(C) Hole
Spacing
(J) Hole
Spacing
(P) Pilot
Diameter
(K) Drill
Size
Part Number Price Buy
NPJ518NB6-320.21800.43600.1390#40
12-04794
$54.75
Quantity
NPJ518NC8-320.23400.46800.1640#40
12-04795
$54.75
Quantity
NPJ518ND10-320.25000.50000.1910#40
12-04796
$54.75
Quantity
Subtotal $0.00
Add to Wishlist

Overview

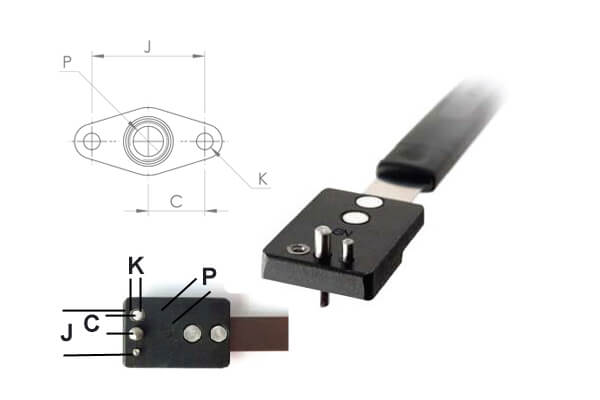

Two-Lug Double Wing Miniature Nut Plate Drill Jig (DWM) Features:
  • Two-Lug Double Wing Miniature Nut Plate Drill Jigs are designed to facilitate accurate rivet hole drilling for standard plate nuts.
  • Nut Plate Drill Jigs are known as Anchor Nuts Or Nut Plates.
  • Omega Technologies' hand-held Nut Plate Drill Jigs are manufactured to precise tolerances and include drill bushings to reduce wear and assure consistent hole-spacing.
  • Every Nut Plate Drill Jig features an ergonomically designed handle with a flexible stainless spring blade, allowing for clearance while the jig is in use.
