Vividia Me-610 Automotive Industrial Borescope Inspection Camera

$1299.00/Each
Add to cart for current price
Quantity
Add to Wishlist
Part# 12-05431
MFR Model# ME-610

Overview

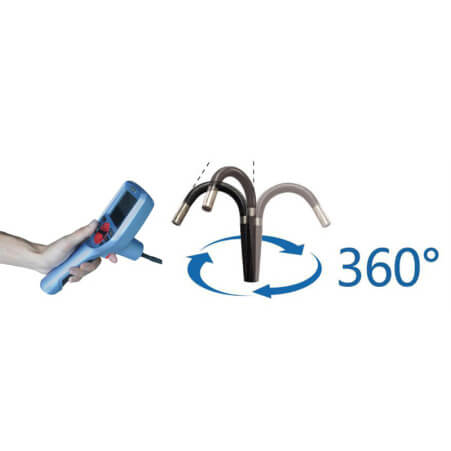

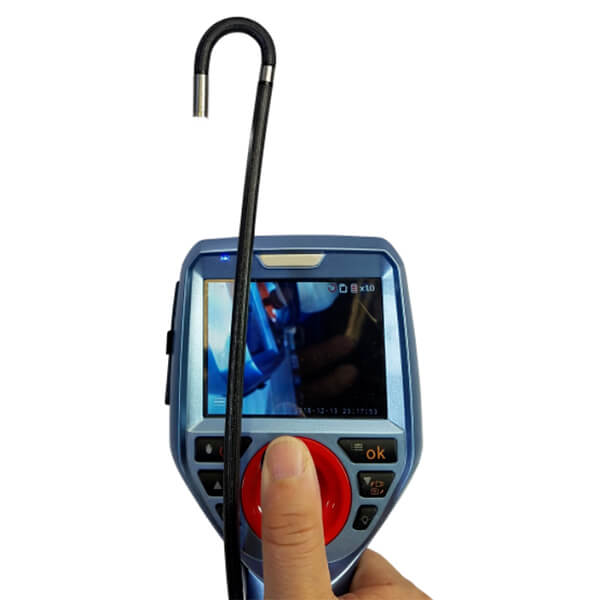

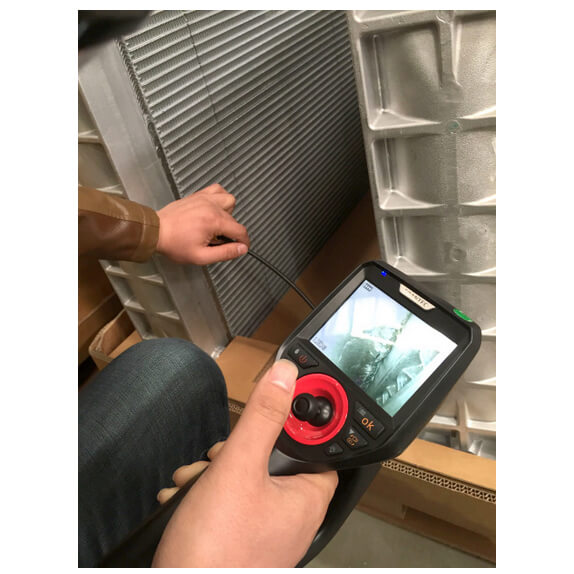

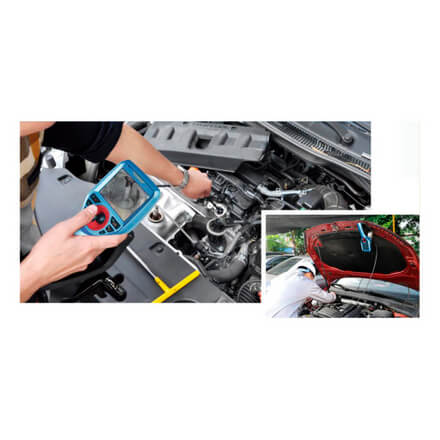

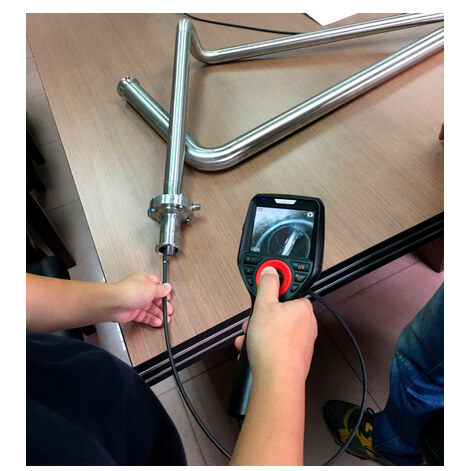

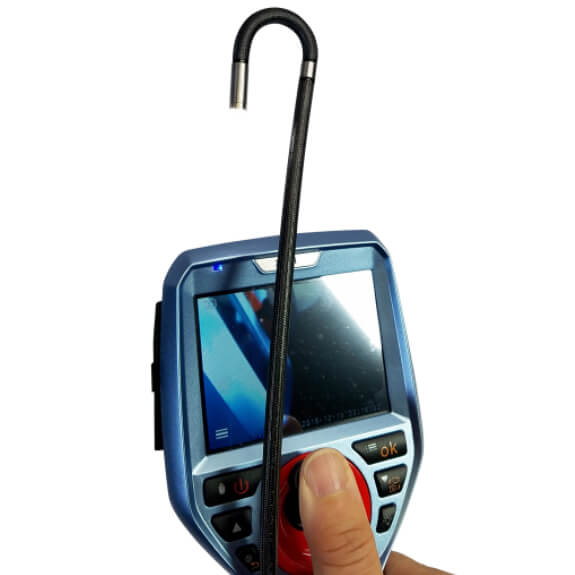

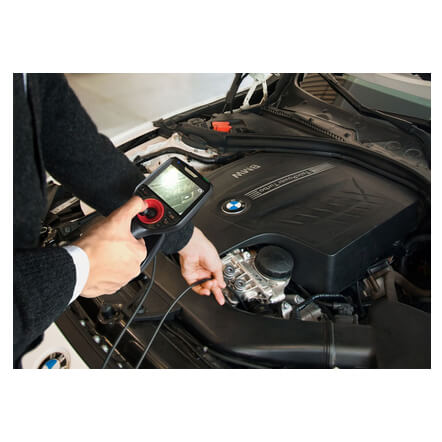

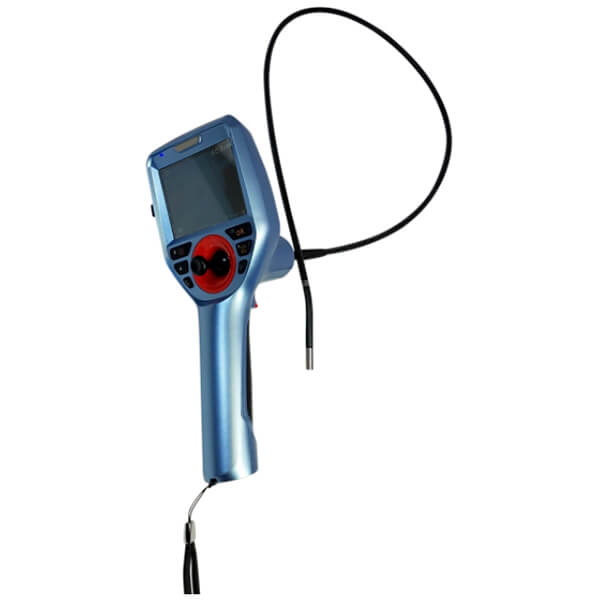

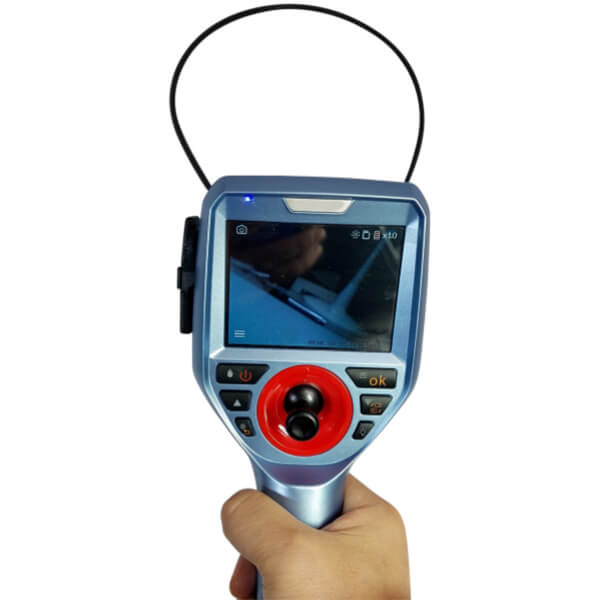

Vividia ME-610 Automotive Industrial Borescope Inspection Camera is specially designed for automotive and industrial inspection and diagnostics. Vividia ME-610 has 1 meter long, 6mm diameter probe with 360° all-way articulation controlled by joystick. The camera is equipped with sapphire protective lens, which is impact-resistant, fall-resistant, and scratch resistant. The probe is made from titanium alloy with high wear resistance. The camera probe and insertion tube is waterproof IP67. Vividia ME-610 gives high quality clear images with high illuminance LED lights. With 8G mini SD card installed on monitor, one can take pictures and record videos with Vividia ME-610. Vividia ME-610 is widely used to exam car engine cylinder block, valve, piston head, nozzle, ternary catalytic converter, evaporation tank, piping and gap of car body. Vividia ME Series Articulating Borescopes include three models: ME-610 (without air cooling channel), ME-610C (with air cooling channel for compressed air cooling), and ME-610HT (with air cooling and compact rechargeable pump for hot engines).

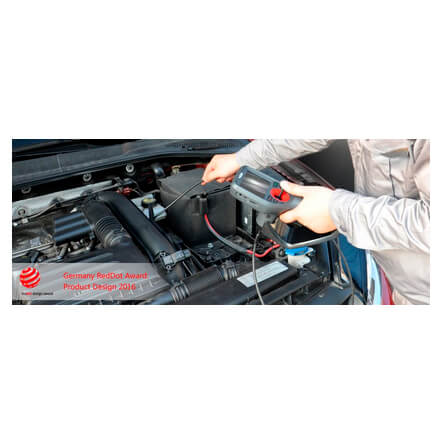

Vividia ME-610 Automotive Borescope Inspection Camera is specially designed for automotive inspection and diagnostics. Vividia ME-610 has 1 meter long, 6mm diameter probe with 360° all-way articulation controlled by joystick. The camera is equipped with sapphire protective lens, which is impact-resistant, fall-resistant, and scratch resistant. The probe is made from titanium alloy with high wear resistance. The camera probe and insertion tube is waterproof IP67. Vividia ME-610 gives high quality clear images with high illuminance LED lights. The end user can easily preview, take pictures and record videos, save files on SD card. ME-610 is widely used to exam car engine cylinder block, valve, piston head, nozzle, ternary catalytic converter, evaporation tank, piping and gap of car body.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

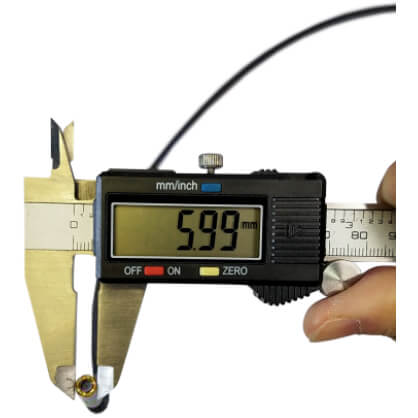

  • Camera Diameter: Φ6mm
  • Camera Material: Titanium alloy
  • ​Camera Pixel: 690,000 (960x720)
  • Depth of Field: 5mm~1000mm
  • Angle of Field: 100°
  • Illumination: 20,000lx at a maximum~adjustable
  • Bending Control: 360°all way mechanical control
  • Bending Angle: ≥210°
  • Probe Working Length: 1.0m

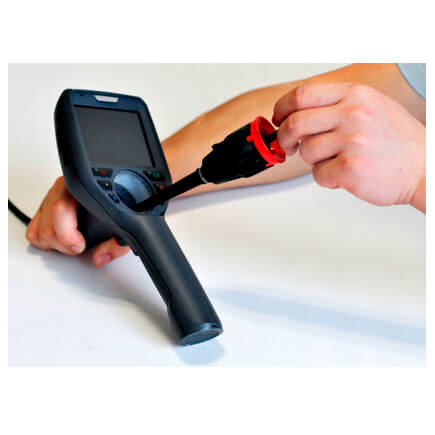

  • Replaceable Insert Tube: Users can easily replace the spare insert tube
  • Waterproof: Camera/Object lens/Tubes IP67
  • Insert Tube: Quadruple tungsten-braided tubes
  • Display: 3.5” TFT LCD
  • Display Resolution: 960*720
  • Memory: Standard mini SD card 8G
  • Data I/O port: Micro-USB port, HDMI Video output port
  • Take pictures: Yes, jpg format
  • Record videos: Yes, avi format
  • Host Working Time: ≥4 hours
  • Weight: ≤0.45kg with batteries
  • Power Supply: Rechargeable lithium battery
  • Battery Capacity: 4.2V 3200mAh
  • Power Consumption: 2W
  • Charging Parameters: DC5V, Maximum current:1A
  • Remote Connection: computers or TV
