Pilot Relief Tubes - Venturi

$35.50/Each
Quantity
Add to Wishlist
Part# 13-04171
MFR Model# 41A9177

Overview

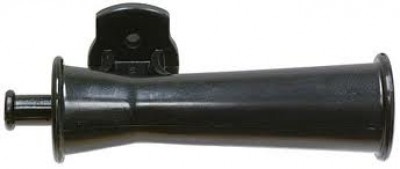

Black molded plastic venturi mounts on fuselage bottom and produces required suction to horn and outlet tubes for fluid ejection.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

The replacement item is exactly what was required.

Field A Verified Purchase

AC41A9177 Venturi

January 23, 2023

Packed well, Quality product, simple design, plenty cost effective, simple to install, and most importantly works VERY well. My plane has a max airspeed of 120kts and the venturi works well as slow as 80kts. I purchased the horn (AN8018-1) and 10 of 7/16 ID x 5/8 OD x 3/32 Wall Tygon Sanitary Silicone Tubing from US Plastic Company (USP). Installed 5/8 IID rubber grommets on all the hose penetrations. The venturi produces a slight (but plenty effective) suction that will vacuum fluid UPHILL. I think this is an important note since pilots are seated and many pilots dont actually understand how this system or idea works. Being in the seated position presents a challenge for me to urinate into a bag (gravity flow) without unbelting and getting into a far reclined awkward/uncomfortable position. The horn will fit over the male part and actually seal off due to the suction of the venturi (youll catch on quickly ) and as one urinates, its vacuumed through the hose (uphill as needed due to sitting) and out the center of the venturi mounted on the bottom of the aircraft in the slipstream. As far as urine getting on the aircraft, (online comments concern from some not having tried this product) i have yet to have that issue, maybe this is because of the mounting position and shape of my AC (2016 Jabiru J230D), I just dont have this issue and Im extremely happy to find this pilot relief system of products from Aircraft Spruce. Has made my trips much more comfortable and I no longer have to stop between fuel demands.

Tony B
September 19, 2022

The venturi was packed very well and came quickly.

Thomas B
December 24, 2020

Easy to install, works well.

Rich
May 7, 2020

David W Verified Purchase

AC41A9177 Venturi

August 19, 2021

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What are the dimensions of this pilot relief tube venturi?

This venturi is approximately 5" in length and 2-1/4" in height.

Q: do they make a disposable liner for the relief tube

We do not have a liner for the tube.

Q: Which parts do I need for the entire set?

You would also need part number 13-04167. Its the horn, valve and tube.
