Aurora Bearing Xab-7

$29.85/Each
Quantity
Add to Wishlist
Part# 04-00269
MFR Model# XAM-7

Overview

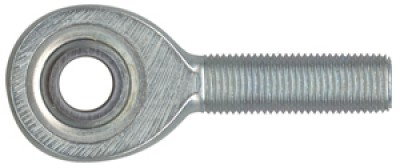

Aurora Bearing XAB-7. Right hand thread rotation.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Thread type: right hand or left hand
  • Thread configuration: male
  • B-Ball Bore [inch]: .4375
  • W Ball Width [inch]: .562
  • H-Head Width [inch]: .437
  • A-Base to Center [inch]: 2.438
  • D-Head Diameter [inch]: 1.312
  • Ball Diameter [inch]: .812
  • C-Thread Length [inch]: 1.500
  • Thread Size: 1/2-20
  • Thread Class: UNF-3A
  • a- Misalignment Angle Clevis Mounted [degrees]: 12
  • Ultimate Radial Static Load Capacity [lbs.]: 23,452
  • Options: Stud
  • Lubrication Options: Zerk Fitting, Flush Fitting or Ptfe Liner
