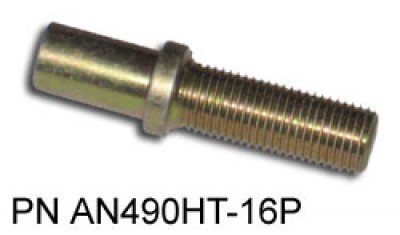

- Photo may represent series and not specific product
- SHARE
| PN | Thread | Tube | Price | Buy |
|---|---|---|---|---|
AN490HT5P | 1/4-28 | 5/16 X .035 | $23.00 | |
AN490HT6P | 1/4-28 | 3/8 X .035 | $15.85 | |
AN490HT8P | 1/4-28 | 1/2 X .035 | $14.95 | |
AN490HT10P | 5/16-24 | 5/8 X .035 | $23.95 | |
AN490HT11P | 5/16-24 | 3/4 X .035 | $18.95 | |
AN490HT14P | 3/8-24 | 3/4 X .035 | $18.60 | |
AN490HT15P | 5/16-24 | 1/2 X .058 | $22.95 | |
AN490HT16P | 3/8-24 | 1/2 X .058 | $22.50 |
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview
| Manufactured of 4130 steel, heat-treated and cadmium plated. Minimum tensile strength 125,000 PSI. For welding to steel tubing or riveting to aluminum tubing. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Reviews
Great
Verified Purchase
Threaded Rod Ends AN490HT8P
Right part, fair price, shipped fast. A+++
Verified Purchase
Threaded Rod Ends AN490HT11P
Verified Purchase
Threaded Rod Ends AN490HT6P
GREAT CONNECTOR WHEN BUILDING A TRIM ROD.
Correct parts arrived quickly.
nice part fit perfectly in tube size it was designed for thread quality was very nice.
This made my project 1000% easier. Just insert into .75 tubing, weld. Your push-pull tube is complete.
I used it on a pipe of the specified size, but it was too thick and didnt fit. I tried a few but it was the same. I dont know which one is the different size.
Verified Purchase
Threaded Rod Ends AN490HT8P
The AN490HT16P is not described properly on the portal. According to the description the non-threaded side of the part is 1/2 X .058. But in reality its only 3/8 dia. So it should be 3/8 X 0.058.
Q&A
Please note, Aircraft Spruce ®'s personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce ® assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
That is the OD and wall thickness of the tube to be used with the rod end.
The length of the threaded portion for the AN490HT11P is 1".
