(Hover to zoom | Use mouse wheel for +/-)

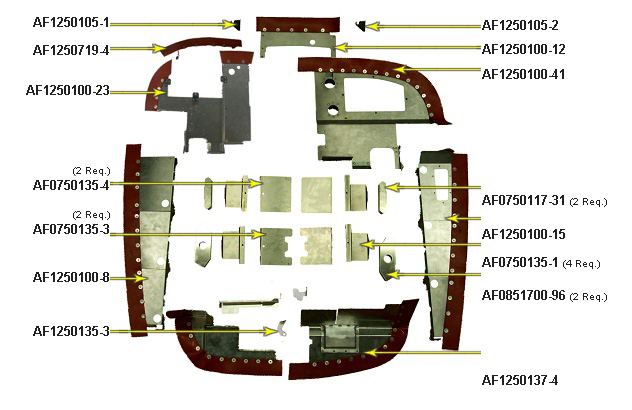

|AF1250105-1 BAFFLE COMPONENT|
|AF1250100-8 BAFFLE COMPONENT|
|AF0750135-4 BAFFLE COMPONENT|
|AF1250135-3 BAFFLE COMPONENT|
|AF0750135-3 BAFFLE COMPONENT|
|AF1250927-1 BAFFLE COMPONENT|
|AF0851700-96 BAFFLE COMPONENT|
|AF0750135-1 BAFFLE COMPONENT|
|AF0750117-31 BAFFLE COMPONENT|
|AF1250100-15 BAFFLE COMPONENT|
|AF1250100-41 BAFFLE COMPONENT|
|AF1250100-12 BAFFLE COMPONENT|
|AF1250105-2 BAFFLE COMPONENT|
|AF1250719-4 BAFFLE COMPONENT|
All baffles are bare 6061-T6 aluminum unless the powder coating option is chosen. The powder coating finish is a black and grey hammertone. Powder coating option available for an additional 20%.
Please email or call for more details.
The silicone baffle seal material can be special ordered in orange, dark blue or black by calling
1-877-477-7823 or by email
210: Serial No. 21059200 thru 21060089
1960 to 1969
