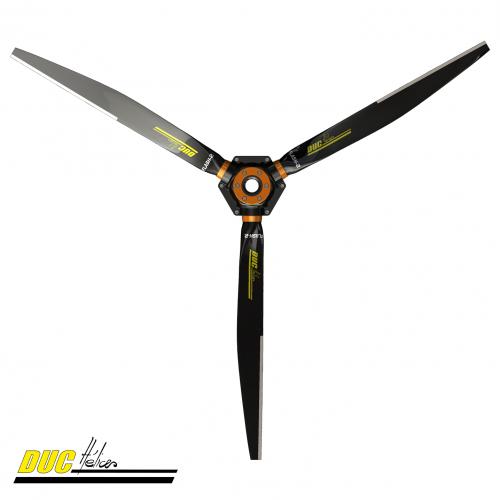

DUC FLASH-2 INCONEL PROPELLER - 3 BLADE
MFR Model# 01-23-002
The Flash-2 propeller range with innovative design, specifically about its twisting axis and center of pressure. Its aerodynamic design allows a "constant speed" effect, limiting variations in engine speed between on ground and in flight.
These propellers allow for high efficiency throughout the flight envelope
Improved takeoff and climb rate due to higher engine speed, then higher engine efficiency
The blades and the hub of the Flash propeller range are manufactured according the DUC HÚlices company technologies, from unidirectional layers of carbon fibers prepreg epoxy resin.
Many cruise extension
A high user comfort
Their composite structures are defined to obtain the maximum stresses in torsion and bending. Therefore "constant speed" effect is not related to deformation of the blade but its geometry and specific profile.
Due to its specific geometric definition, excellent performance is obtained in both aerodynamic and acoustic, but also in consumption.
Shielding leading edge in Inconel
The leading edge of the FLASH blades is equipped with a metallic shielding in Inconel«. This material is refractory stainless with a very high hardness of surface.
- Tractor or pusher configuration (available in right & left rotation)
- Diameters ě1520, ě1620, ě1660, ě1730, ě1850mm and others tailor made
- Three Blade 9.99lb.
- Shielded leading edge in Inconel«
- Carbon composite hub with metallic inserts
- Direct assembly on the propeller-shaft ě101.6mm
