| STANDARD SPINNERS & MOUNTING PLATES | Part No. | Price | Buy |
|---|---|---|---|
| Two-blade spinner 210mm | 05-06783 | $225.00 | |
| Three-blade spinner 210mm | 05-06785 | $225.00 | |
| Two-blade spinner 250mm | 05-06787 | $359.95 | |
| Three-blade spinner 250mm | 05-06789 | $359.95 | |
| Two-blade spinner mounting plate 210mm | 05-06784 | $199.95 | |
| Three-blade spinner mounting plate 210mm | 05-06786 | $199.95 | |
| Two-blade spinner mounting plate 250mm | 05-06788 | $225.00 | |
| Three-blade spinner mounting plate 250mm | 05-06790 | $225.00 |
- JUMP TO
- Overview
- Reference Chart
- Accessories
- Reviews
- Q&A
Overview
|

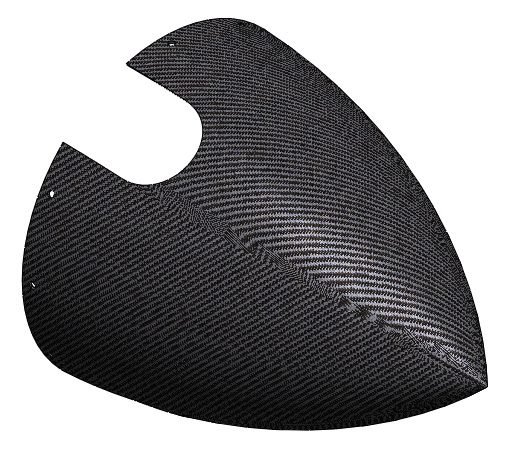

The DUC spinners are carried out in preimpregnated carbon fiber materials with on the surface woven carbon fabric.
The mounting plate, entirely out of carbon, thickness 0.12" (3mm), is produced with the Carbon ForgeŽ process, also used for the manufacture of the DUC propeller hubs. This patented process makes it possible to increase considerably the mechanical characterestics of the composite parts. The DUC Standard spinner is available in different sizes to fit with many aircraft engine bonnet:
Important Note: The mounting plate presents a shift of 0.24" (6mm) towards the interior between its support face and the base of the DUC spinner 8.3" or 9.8". |
Reference Chart
Description | Part Number |
Three-blade spinner 8.3"mm | 05-06785 |
Three-blade spinner mounting plate 8.3" | 05-06786 |
Two-blade spinner 8.3"mm | 05-06783 |
Two-blade spinner mounting plate 8.3" | 05-06784 |
Three-blade spinner 9.8"mm | 05-06789 |
Three-blade spinner mounting plate 9.8" | 05-06790 |
Two-blade spinner 9.8"mm | 05-06787 |
Two-blade spinner mounting plate 9.8" | 05-06788 |
