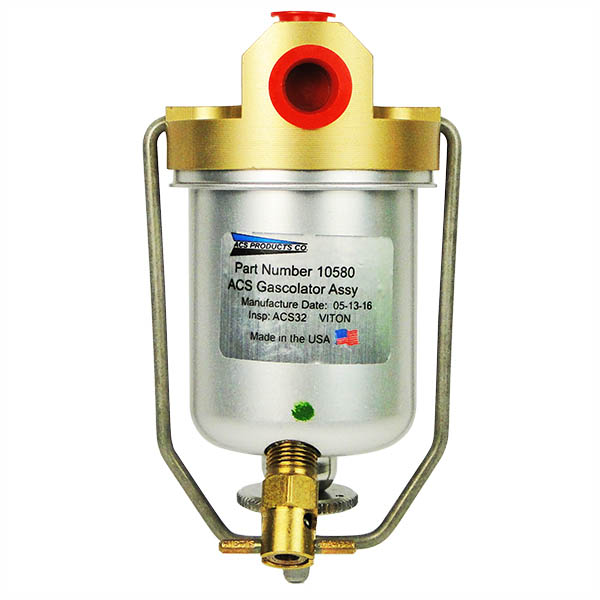

ACS Homebuilders Gascolator 10580

26 Reviews 16 Answered Questions
$124.85/Each
Quantity
Add to Wishlist
Part# 10580
MFR Model# 10580

Overview

Homebuilders Special!

All-metal gascolator with S.S. screen, 1-7/8" dia. cadmium plated steel bowl w/quick drain. Top is CNC machined from 6061-T6 aluminum. Top has 1/4" pipe ports for 3/8" fuel line and one 1/8" pipe port for primer fitting. Wt: 8 oz. May be used with aviation and / or auto fuel. Screen size is 122 microns. Replacement gasket for auto fuel is p/n 06-00441.

Made in USA

Note: for use with aviation fuel and standard auto fuel. Do not use with fuel injectors because it cannot stand up to the pressure.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Submit a Review

Norine L Verified Purchase

HOMEBUILDERS GASCOLATOR 10580
September 14, 2023

Very nice product!

Brian O Verified Purchase

HOMEBUILDERS GASCOLATOR 10580
May 25, 2023

Pierre L Verified Purchase

HOMEBUILDERS GASCOLATOR 10580
December 27, 2022

Exactly as I wanted.

David K Verified Purchase

HOMEBUILDERS GASCOLATOR 10580
December 21, 2022

Paul B Verified Purchase

HOMEBUILDERS GASCOLATOR 10580
September 7, 2022

I bought this with the gascolator bracket 10371. You have to remove the bail wire to fit it into the bracket but otherwise it is great.

Tarane F Verified Purchase

HOMEBUILDERS GASCOLATOR 10580
September 6, 2022

Pretty good gascolator with a good price for experimental aircrafts !

Claudio L Verified Purchase

HOMEBUILDERS GASCOLATOR 10580
April 13, 2022

The catalog did not indicate it was for home builders?

Charles B Verified Purchase

HOMEBUILDERS GASCOLATOR 10580
March 31, 2022

Высокое качество,простота исползования,отличная цена

Cherkevich M
March 14, 2022

I havent installed the parts yet but they look good

Stan W Verified Purchase

HOMEBUILDERS GASCOLATOR 10580
November 24, 2021

Q&A

Submit

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What micron screen comes standard when purchasing this gascolator?

The screen size for this ACS Gascolator is 122 microns.

Q: Can this ACS Gascolator be used with the Lycoming / Bendix Fuel Injection system? The fuel pressure would be 25 to 30 PSI....wondering if the higher fuel pressure is an issue. Thank you!

This particular gascolator is not recommended for use with fuel injected systems. However, ACS does manufacture part number 05-04248 (ACS HIGH PRESSURE GASCOLATOR). The high pressure gascolator is rated for use in systems up to 50 PSI.

Q: What are dimensions and overall height of this ACS Homebuilders Gascolator?

Approximate height is 4-1/2". Approximate diameter of cylinder is 2-1/4".

Q: What is the part number for a replacement gasket for the ACS Homebuilders Gascolator?

Use part # 06-00441. See Accessories.

Q: Regarding Part # 10580: What is the pipe size of the factory fuel drain that is screwed on it?

The unit has an 1/8" NPT threaded drain valve.

Q: What is the max continuous fuel pressure for this ACS Homebuilders Gascolator?

The max continuous fuel pressure would be 3lbs for part # 10580. If you are looking for a gascolator with a higher fuel pressure, take a look at P/N# 05-04248, this would have a 40lb continuous fuel pressure.

Q: What is the diameter in the area where the pipe ports are? What is the diameter of the gascolator bowl?

The diameter of where the inlet and outlet ports is 1" and the top port is .8". The diameter of the gascolator bowl is 1.875".

Q: What is the volume of the ACS homebuilders gascolator?

Maximum capacity of the bowl is 3.3 oz

Q: What is the volume of the ACS homebuilders gascolator (Part # 10580)?

Maximum capacity of bowl: 3.3 OZ

Q: What is the thread specification of ACS homebuilders gascolator Part #10580 ?

The fuel inlet and outlet are 1/4" NPT, and the primer and drain ports are 1/8" NPT.
