Piper Wing Tank Fuel Drain Kit - Flush Drain

$32.25/Kit
Quantity
Add to Wishlist
Part# 05-01894

Overview

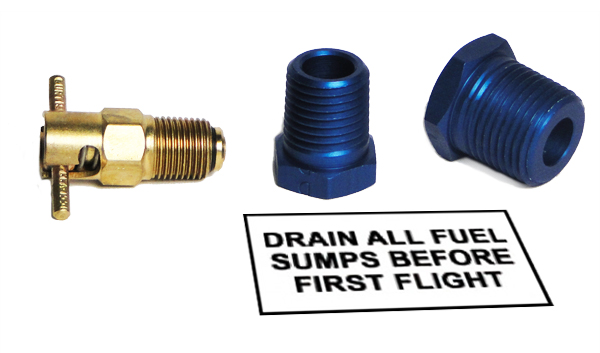

Developed in compliance with Airworthiness Directive 85-06-04 for Piper aircraft. Fits most popular Piper aircraft, including J-3, 4, 5; PA-12, 14, 15, 16, 17, 18, 20 & 22. Wing kit includes: bushing reducer, drain valve, warning sign & instructions (AD85-06-04).

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Kit Components

Qty
Description
PN
1
AN912-1D AN Fittings
AN912-1D
1
AN912-3D AN Fittings
AN912-3D
1
Drain All Fuel Sumps
09-00348
1
Curtis Drain Valves CCA-1
05-01869

Reviews

I have a 43 J3 with a 12 gal wing tank. I did not need the adapters, went in very easy and does not leak and is east to check. Works as shown.

Chris
May 23, 2019

Does not fit PA-22-150. I thought I would order this kit since I was on the road and couldn’t remember the NPT size for the PA-22. I needed to replace a rusty fuel drain when I got home for a big vacation trip and thought this would be a full-proof way to get the proper parts. Did a dry fit and found that with the 1/4” NPT adaptor and the 1/8” fuel drain fully tightened the door won’t open or close, there’s about 1/4” of interference. The valve hangs down ridiculously low below the wing when fully tightened. Order 1/4” NPT flush fuel drains for your PA-22-150, you don’t need adaptors.

Richard
August 30, 2021

I installed these fuel sumps and after a couple uses they started to leak. I lost over 15 gallons of AV Gas. $$ very expensive loss.

Billy D
October 6, 2020
