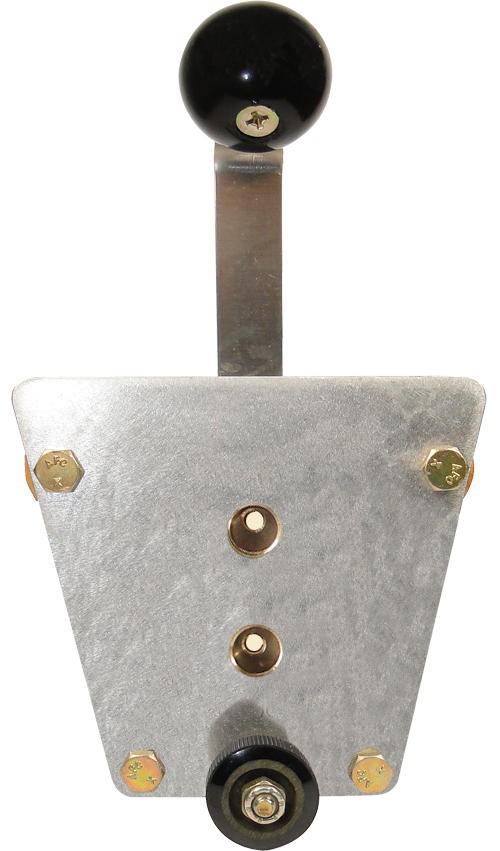

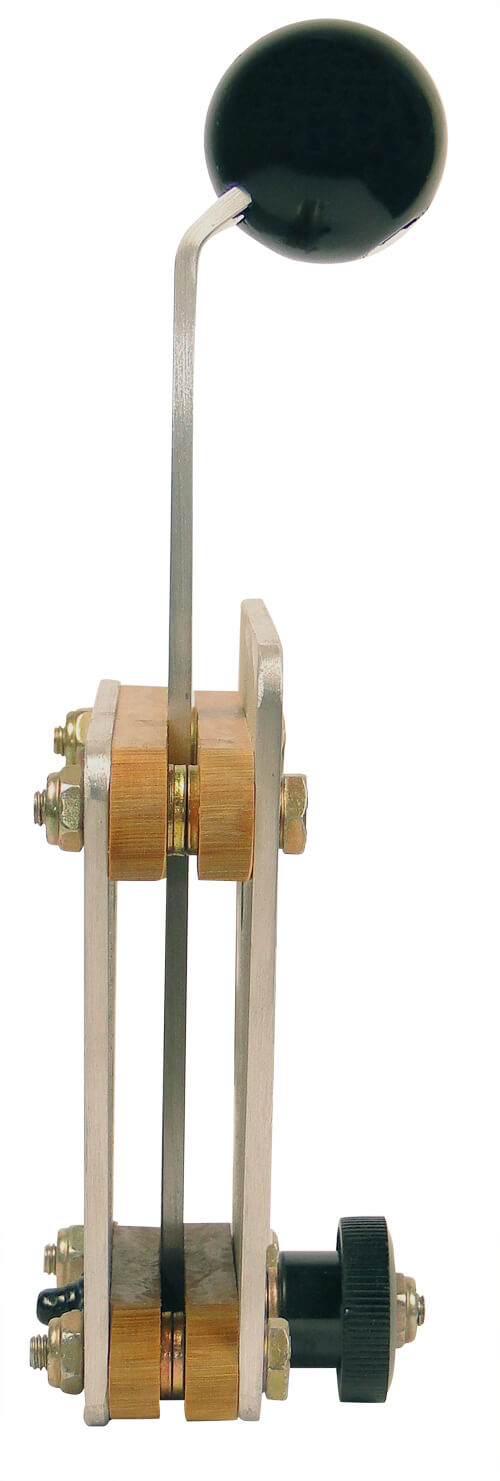

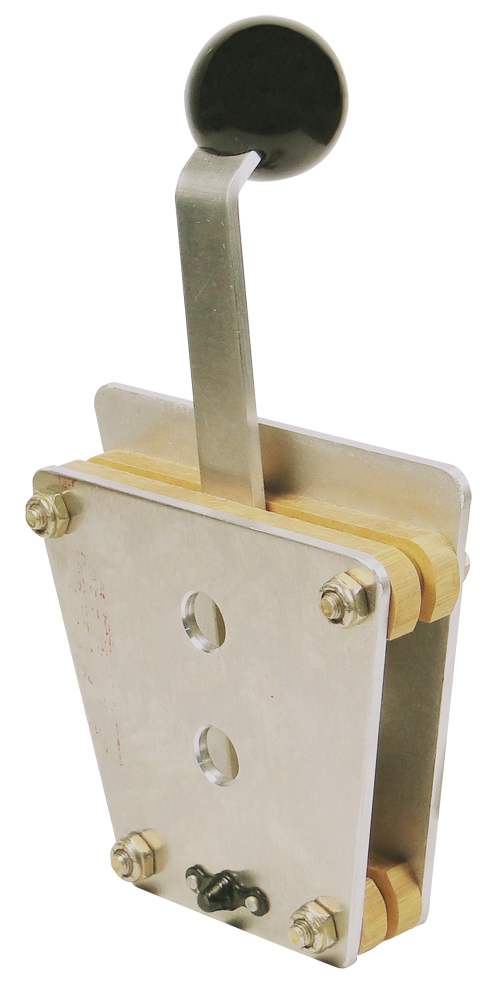

Single Handle Type C Throttle Quadrant

$90.75/Each
Quantity
Add to Wishlist
Part# 15-05987
MFR Model# RV4F1-1066

Overview

All plates and arms are constructed of light weight 0.125” 2024T-3 aluminum. Phonemic spacers provide for smooth operation and positive friction settings. Stop screws can easily be installed as shown for positive control of both forward and back stop positions. An optional Friction Control Knob (part #8129) can also be installed for easy in flight control of handles.

Also available with optional U-shaped adapters that support cable end adjusters to support standard cable and housing. Available in single handle or two handle units. Three handle units available on special request.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Well designed yet simple.

Tom
March 28, 2020

Very nice throttle...adjustable short or long throw...adjustable handle tension...

David L
January 6, 2019

I installed this quadrant on the floor near to the door of my CH 701 to have a more relaxed throttle control operation, pretty happy with this setup

William J
October 5, 2017

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the travel length of the throttle wire?

The upper hole has a travel of approximately 1-9/16" and the lower hole has a travel of approximately 1-1/16".
