Homebuilders Throttle Quadrants Model 2 - Internal Non Reversing

From $72.75 to $127.75
Size Description Part No. Price Buy
StandardSingle Lever Quadrant
05-15920
$72.75
Quantity
StandardSingle Lever Quadrant w/Friction
05-15920-F
$86.75
Quantity
StandardSingle Lever Quadrant w/T-Bar
05-15920-1
$88.75
Quantity
StandardSingle Lever Quadrant w/T-Bar, w/Friction
05-15920-1F
$102.99
Quantity

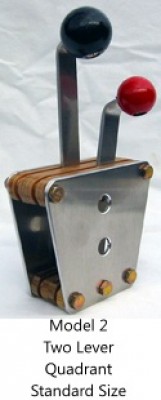

StandardTwo Lever Quadrant
05-15925
$76.75
Quantity
StandardTwo Lever Quadrant w/Friction
05-15925-F
$95.85
Quantity

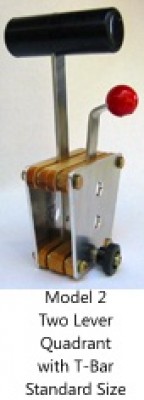

StandardTwo Lever Quadrant w/T-Bar
05-15925-1
$93.90
Quantity
StandardTwo Lever Quadrant w/T-Bar, w/Friction
05-15925-1F
$109.75
Quantity
StandardThree Lever Quadrant
05-15930
$86.75
Quantity
StandardThree Lever Quadrant w/Friction
05-15930-F
$101.75
Quantity
StandardThree Lever Quadrant w/T-Bar
05-15930-1
$103.75
Quantity
StandardThree Lever Quadrant w/T-Bar, w/Friction
05-15930-1F
$119.75
Quantity
LargeSingle Lever Quadrant
05-02414
$75.75
Quantity
LargeSingle Lever Quadrant w/T-Bar
05-02414-1
$96.95
Quantity
LargeThree Lever Quadrant w/Friction
05-02417
$103.75
Quantity
LargeSingle Lever Quadrant w/Friction, w/T-Bar
05-02417-1
$103.90
Quantity
LargeTwo Lever Quadrant
05-02415
$86.75
Quantity
LargeTwo Lever Quadrant w/T-Bar
05-02415-1
$103.75
Quantity
LargeTwo Lever Quadrant w/Friction, w/T-Bar
05-02418-1
$122.75
Quantity
LargeThree lever Quadrant
05-02416
$103.85
Quantity
LargeThree Lever Quadrant w/T-Bar
05-02416-1
$112.95
Quantity
LargeThree Lever Quadrant w/Friction
05-02419
$119.75
Quantity
LargeThree Lever Quadrant w/T-Bar, w/ Friction
05-02419-1
$127.75
Quantity
3/4Single Lever Quadrant
05-02422
$72.75
Quantity
3/4Single Lever Quadrant w/Friction
05-02430
$85.75
Quantity
3/4Single Lever Quadrant w/Friction, w/T-Bar
05-02430-1
$98.85
Quantity
3/4Two Lever Quadrant
05-02423
$77.75
Quantity
3/4Two Lever Quadrant w/T-Bar
05-02423-1
$93.90
Quantity
3/4Two Lever Quadrant w/Friction
05-02431
$100.75
Quantity
3/4Two Lever Quadrant w/Friction, w/T-Bar
05-02431-1
$97.75
Quantity
1/2Single Lever Quadrant
05-02426
$80.75
Quantity
1/2Single Lever Quadrant w/T-Bar
05-02426-1
$87.95
Quantity
1/2Single Lever Quadrant w/Friction
05-02434
$96.75
Quantity
1/2Single Lever Quadrant w/Friction, w/T-Bar
05-02434-1
$103.75
Quantity

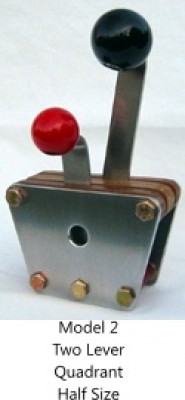

1/2Two Lever Quadrant
05-02427
$84.75
Quantity
1/2Two Lever Quadrant w/T-Bar
05-02427-1
$93.99
Quantity
1/2Two Lever Quadrant w/Friction
05-02435
$100.90
Quantity
1/2Two Lever Quadrant w/Friction, w/T-Bar
05-02435-1
$109.75
Quantity
Subtotal $0.00
Add to Wishlist

Overview

These quality quadrants have been in use for over 35 years in a wide variety of experimental and ultralight aircraft. All quadrants are made with AN standard hardware and aircraft-quality 6061-T6 or 2024-T3 Aluminum. All sizes and models can be utilized for a side mount, center mount, or dual-control hookup. Can be used in Pitts, Cub, Aeronca, Bakeng Deuce, Horizon 2, Dakota Hawk, Quicksilver, Mini Max, Dragonfly, X-Air, etc. If you have an aircraft, we have a quadrant that will fit your needs.

Model #2 - This internal non-reversing hookup quadrant is often used on the RV series and similar aircraft. Available in all four sizes with one, two or three levers. Friction or non-friction. L-series can achieve a throw up to 2-5/8".

Four sizes available:
Special series quadrants:
Large Series 4-78" wide x 4" tall. 13 oz.
Standard Series 4" wide x 3-1/2" tall. 11 oz.
3/4 series 3-7/8" wide x 3" tall. 10 oz.
1/2 series 3-7/8" wide x 2-5/8" tall. 8 oz.
RV-series 4" wide x 4" tall. 12 oz.
Panel Mount
4" wide x 3-1/2" tall 12 oz.
Twin Engine
4-7/8" wide x 4" tall 15 oz.
All weights are for two arms and friction. (Except twin engine).
Measurements do not reflect Lever lengths.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

QUAD 1/2 N/R INT (1/2-2NRI) Im building a Zenith 750 SD. This throttle control is perfect for panel mounting. Any larger would be too big. Well made!

Kenneth E
June 16, 2020

Excellent as described and fast shipping

Wesley D
August 15, 2019
