Homebuilders Throttle Quadrants Model 6

From $92.75 to $133.75
Type Description Part No. Price Buy
Reversing InternalFour Lever Quadrant
05-02364
$92.75
Quantity
Reversing InternalFour Lever Quadrant w/T-Bar
05-02364-1
$115.75
Quantity
Reversing InternalFour Lever Quadrant w/Friction
05-02365
$103.75
Quantity
Reversing InternalFour Lever Quadrant w/Friction, w/T-Bar
05-02365-1
$133.75
Quantity
Non-Reversing InternalFour Lever Quadrant
05-02366
$99.65
Quantity
Non-Reversing InternalFour Lever Quadrant w/T-Bar
05-02366-1
$112.75
Quantity
Non-Reversing InternalFour Lever Quadrant w/Friction
05-02367
$108.75
Quantity
Non-Reversing InternalFour Lever Quadrant w/Friction, w/T-Bar
05-02367-1
$132.75
Quantity
Subtotal $0.00
Add to Wishlist

Overview

These quality quadrants have been in use for over 35 years in a wide variety of experimental and ultralight aircraft. All quadrants are made with AN standard hardware and aircraft-quality 6061-T6 or 2024-T3 Aluminum. All sizes and models can be utilized for a side mount, center mount, or dual-control hookup. Can be used in Pitts, Cub, Aeronca, Bakeng Deuce, Horizon 2, Dakota Hawk, Quicksilver, Mini Max, Dragonfly, X-Air, etc. If you have an aircraft, we have a quadrant that will fit your needs.

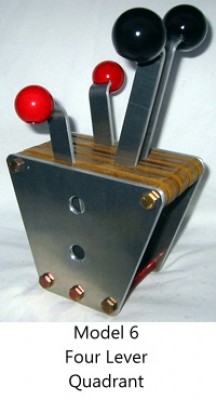

Model #6 - Twin-engine model: Non-reversing internal or reversing internal unit with a four-arm configuration. L-series only. Friction or non-friction.

Four sizes available:
Special series quadrants:
Large Series 4-78" wide x 4" tall. 13 oz.
Standard Series 4" wide x 3-1/2" tall. 11 oz.
3/4 series 3-7/8" wide x 3" tall. 10 oz.
1/2 series 3-7/8" wide x 2-5/8" tall. 8 oz.
RV-series 4" wide x 4" tall. 12 oz.
Panel Mount
4" wide x 3-1/2" tall 12 oz.
Twin Engine
4-7/8" wide x 4" tall 15 oz.
All weights are for two arms and friction. (Except twin engine).
Measurements do not reflect Lever lengths.
