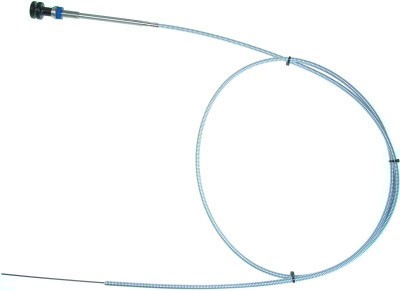

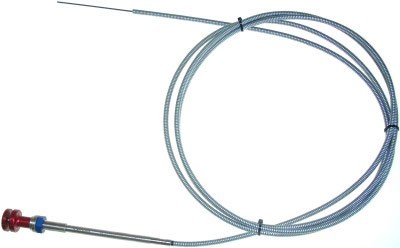

MC6150 Universal Push To Unlock Controls

Select Color:
BlackRed
Select Length:
4-Foot6-Foot8-Foot10-Foot12-Foot

Overview

Perfect for homebuilt or custom projects.

Available in 4, 6, 8, 10 and 12 foot - May be trimmed to length.

  • Quality stainless steel construction
  • Teflon™ lined for smooth operation
  • 15 lb. locking force
  • Heavy duty 0.071 inch wire for strength and long life
  • 3" maximum travel

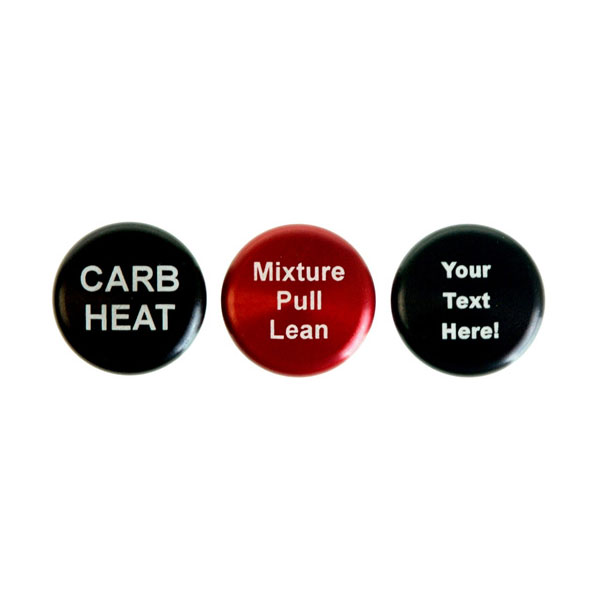

Custom laser marking of the knobs as in sample photo is available per knob. Receive a $15.00 discount for each additional knob with the same design.

California Prop 65 Warning Symbol

WARNING: The product may contain and/or expose you to a chemical(s) or substance(s) which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. www.P65Warnings.ca.gov

Specifications

  • Conduit: 0.24 inch OD Teflon lined wound conduit
  • Inner wire: 0.071 inch diameter music wire
  • Travel (stroke): 3 inch maximum
  • Maximum work loads: 25 lbs (Pull), ~10 lbs* (Push)
  • Minimum locking force: 15 lbs
  • Operating temp: -65 to 450 deg F **
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Exactly what I was looking for. I bought three brake, heater, and alternate air fir myRV-7A. We’ll constructed and smooth as butter. The locking mechanism is firm providing positive control. The only downside is the microscopic BB that makes it all work. There are two extra in the package when you inevitably loose one.

Scot T Verified Purchase

MC6150071BB072 UNLOCK CNTRL 6

November 1, 2022

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Photo says your text here. Is engraving offered on these push to unlock controls? If so, what price?

Yes, the supplier can engrave these with custom text. They are special order and non-returnable, non-cancellable once engraved. Please contact sales at 877-477-7823 to order these controls with custom engraving. Engraving fee is $25 as of May 16, 2013. Sales associate will advise of current fee at time of order.

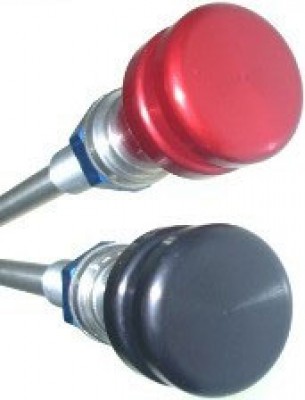

Q: Regarding the MC 6150 Universal Push to Unlock Controls: What size is the diameter of the knob and what size hole does it require for mounting?

The knob diameter is 1" and the the hole size is 7/16".
