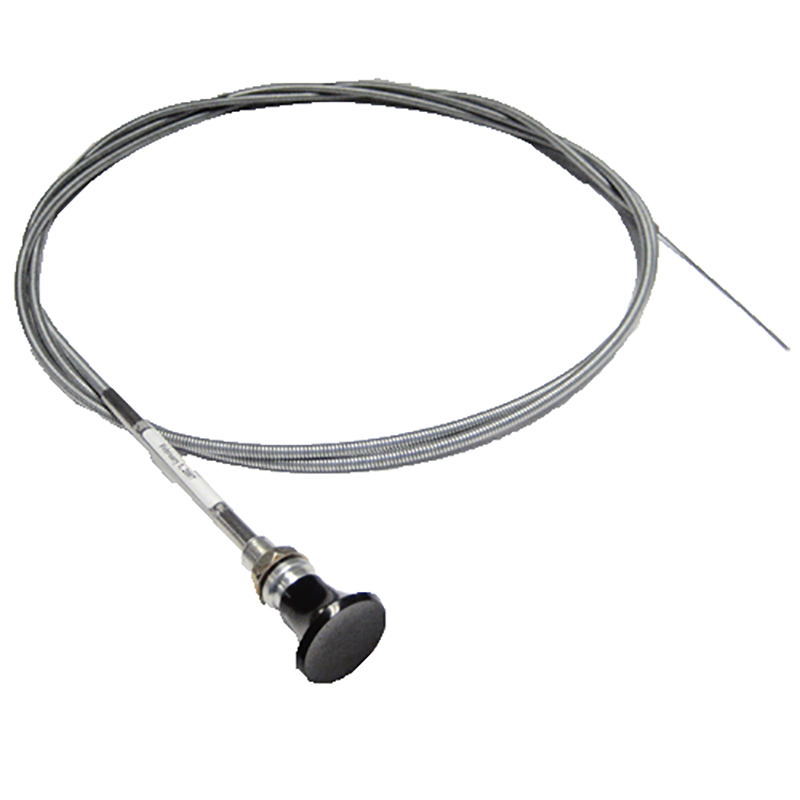

A-730 Glide Free Control
Eligible for FREE Shipping
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview
|
(Solid Wire End) Simple design for push-pull operation with low friction characteristics. Has .050" dia. stainless steel wire core in flexible metal casing with polyethylene liner. May be shortened as required. Max. travel 3-1/2". Available with black or red plastic knob. Made in USA |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Reviews
Great quality feel with your products.
Verified Purchase
A-730 CONTROL 72" BLACK KNOB
Verified Purchase
A-730 CONTROL 72" RED KNOB
Good Quality Push Pull cable with plenty of bowden cable length to adjust the required length. Used it to activate my Matco Pneumatic Park Brake installed in my Zenith Cruzer. Aircraft Spruce shipping to Australia was well boxed and the package only took 8 days to arrive.
Verified Purchase
A-730 CONTROL 72" RED KNOB
As advertised.
Well made, smooth glide.....Im going to have to crimp its style a bit to make it move less easy
This seems to be high quality cable. I worked for my application perfectly.
Part arrived broken so I will be returning it for a refund
Took months to arrive and came apart when first tested
Verified Purchase
A-730 CONTROL 72" BLACK KNOB
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The diameter of the knob on this control is approximately 1-1/8".
A-730 cables have a 3/16" O.D. housing.
It requires a 3/8" hole for mounting.
The knob has 10-32 threads. Loctite is used to secure the knob from the factory when threaded on.
No, it is a galvanized housing with an inner nylon liner.
A-730 controls have .050" diameter inner wire.
This cable does not have any specific application. It is a glide free cable with a solid wire end, so if your application calls for this style cable at this length, it should work very well. It is not an FAA approved unit.
You would first figure out the length for the inner cable and cut it to length. Then you would figure out the length of the outer coil casing(accounting for the stroke) and cut it. It may require a hacksaw or cutoff wheel to cut it.
Yes these are commonly used firewall forward on experimental aircraft.
