COMANT VOR/LOC/GS
(CI-120-200G/S-L)

$1703.00/Each
Quantity
Add to Wishlist
Part# 11-06803
MFR Model# CI-120-200G/S-L

Overview

Frequency 108-118 MHz (VOR/LOC)
329-335 MHz (GS)

VOR/GS navigation antenna set provides optimum VOR performance when used for area navigation. Antenna system qualified for use on single engine, twin, jet, and helicopter aircraft. Blades have leading edge protection andcome with rubber gasket enabling mounting on curved vertical stabilizers.

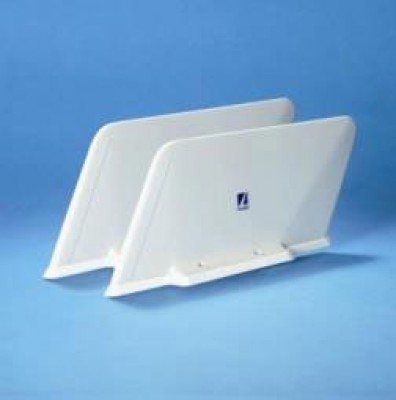

Provides glideslope reception capability. Complete set includes a pair (2) of blades, each with single BNC connector output, two coax i nterconnect cables.

Dual output signal combiner providing for separate RF cable runs to the avionics installation for NAV1 and NAV 2 receivers, is included.

Note: Comant Antennas no longer come with a gasket or a template. Must order PN 09-05579 separately.

Applications
Most aircraft up to and including business jets. Consult your FBO or installation shop for best application information.

Frequencies Covered 108-118 MHz (VOR/LOC)
329-335 MHz (GS)

Specifications

Electrical
Frequency

108-118 MHz (VOR/ LOC)
329-335 MHz (Glide Slope)

VSWR

6.0:1 108-118 MHz (VOR/ LOC)
5.0:1 329-335 MHZ(Glide Slope)

Polarization
Horizontal
Radiation Pattern
Omnidirectional
Impedance
50 Ohms Nominal
Power
Receive Only
Mechanical
Weight
1.4 lb. Per Blade
Height
6.0 in. Maximum
Material
Molded Radome
Finish
Polyurethane Enamel
Connector
BNC/ Single Output Combiner
Environmental
Temperature
-55C to +85C
Altitude
50,000ft.
Air speed
600 Knots TAS @ 25,000 ft
Federal Specifications
RTCA Environmental
DO-160D
FAA TSO
C34e, C36e, C40c
RTCA MOPS
DO-192, DO-195, DO-196
  • Customers Also Viewed
  • Frequently Purchased With
  • Related Items

Reviews

Q&A

Q: BY purchasing the Comant CI-120-200G/S-L, will I get both blades or only one antenna blade?

This is a complete set which includes a pair (2) of blades, each with single BNC connector, and two coax interconnect cables.
