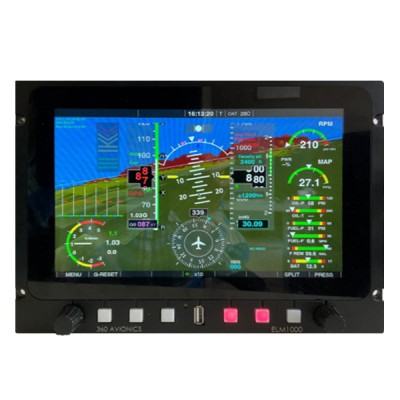

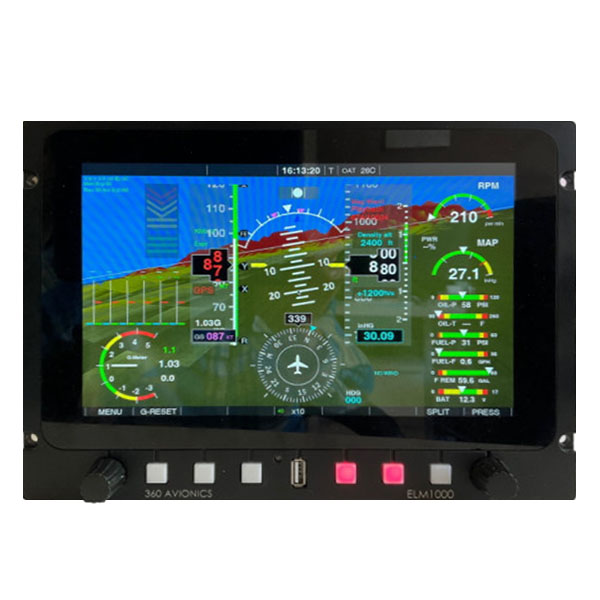

360 Avionics ELM1000 EFIS Flight Instrument
$2499.00/Each
Part# 11-21358
MFR Model# ELM1000
MFR Model# ELM1000
FREE Shipping
- JUMP TO
- Overview
- Features
- Specifications
- Reviews
- Q&A
Overview
|
The ELM1000 EFIS is a state-of-the-art multifunctional flight instrument, designed for enhanced situational awareness and cockpit integration. Featuring a high-definition, capacitive touch 10.2" display, it provides pilots with intuitive control and clear, real-time data, powered by a robust NVIDIA chipset for an exceptional graphical experience.
Advanced Performance & Connectivity: The ELM1000 is equipped with a built-in GPS and AHRS module, providing real-time attitude and position data. For added reliability, an external AHRS can be connected as a backup. Its powerful flight data recorder captures key flight parameters, with easy export to USB for further analysis. Data can also be viewed in Google Earth for comprehensive post-flight reviews. Enhanced Safety Options: When paired with an optional AOA (Angle of Attack) sensor and compatible pitot/AOA sensor, the ELM1000 can function as a digital angle of attack indicator, offering crucial insights for increased in-flight safety. Engine Monitoring Capabilities: The system supports a wide range of sensors, making it highly adaptable for monitoring critical engine parameters. These include: Cylinder Head Temperature (CHT) and Exhaust Gas Temperature (EGT) sensors (up to 6 each) Fuel Pressure, Oil Pressure, and Oil Temperature sensors Manifold Pressure (MAP) and Coolant Temperature sensors Fuel Flow Meters (up to 2x) Engine RPM sensor (compatible with various ignition systems) Gearbox Temperature and Under-Cowling Temperature sensors Current Sensor for electrical monitoring CO level detection sensor *Note: External sensors for engine monitoring are not included and are available as add-ons. EM-01 module is included ONLY when sensors are added to the order. Intelligent Engine Analysis: When paired with supported engine sensors, the EFIS can monitor engine behavior across each phase of flight and compare it with the aircraft’s own previous flight history. This helps identify unusual trends in CHT, EGT, fuel flow, oil pressure, fuel pressure, oil temperature, and electrical system performance, giving pilots valuable early awareness of possible engine, ignition, cooling, or fuel-system issues. Built-in Voice Alerts: The ELM1000 now includes built-in VICS voice alerts, providing real-time spoken warnings for important flight conditions such as bank angle, pitch, airspeed, altitude, and external alert inputs. This gives pilots an added layer of situational awareness without requiring a separate external VICS module. Audio alerts can be connected to the aircraft intercom or audio panel for clear in-flight voice notifications. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Features
Artificial Horizon with integrated AHRS (Attitude and Heading Reference System)Synthetic Vision, including runway and obstacle visualization for enhanced safety
Compass functionality (requires an external magnetometer)

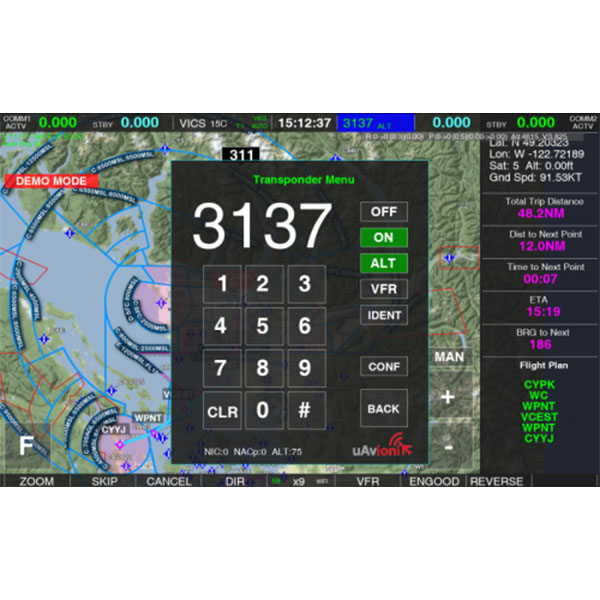

Moving Maps with built-in flight planning capabilities

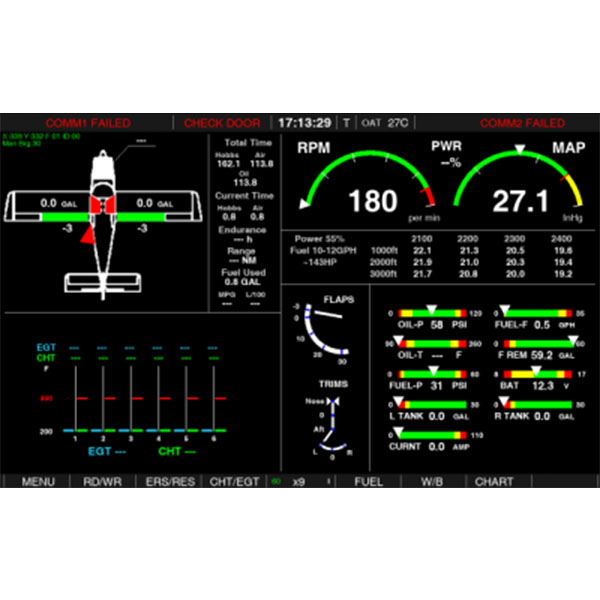

Engine Monitoring, supported by the included EM-01 engine sensor module*
Built-in VICS Voice Alerts real-time spoken warnings for bank angle, pitch, airspeed, altitude, external triggers, and more.
Remote COMM Controls for simplified communication management
Autopilot Controls integration
Checklists for streamlined in-flight procedures
Weight and Balance Calculations for pre-flight planning
ADSB-In Traffic Information via USB WiFi or RS-232 (GDL90) connections

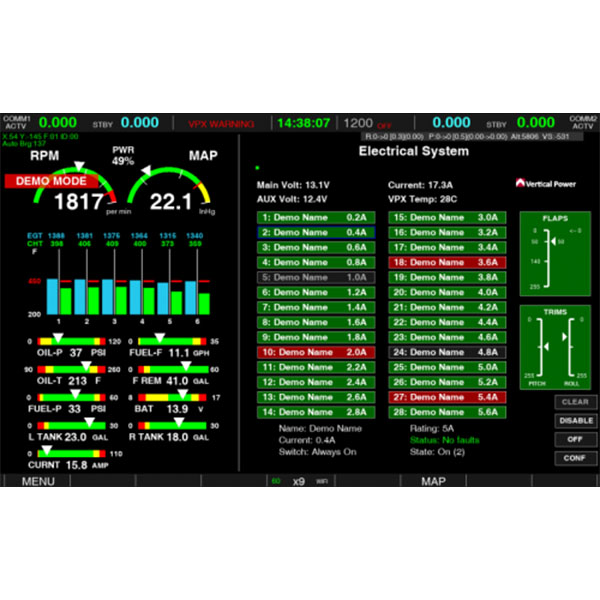

VPX by Vertical Power integration support

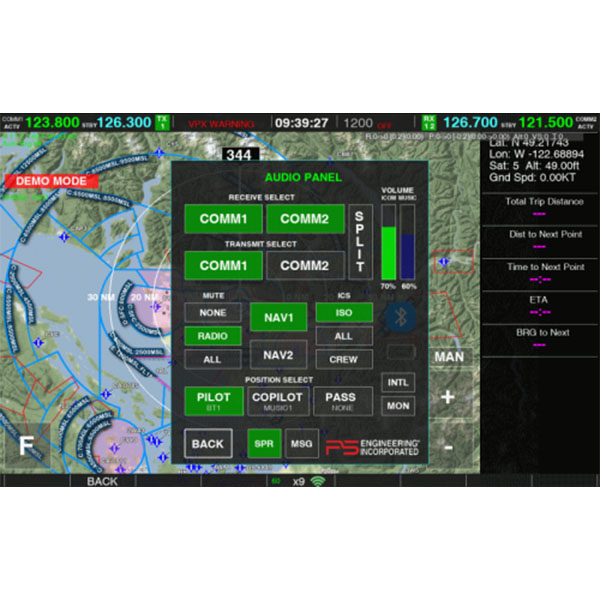

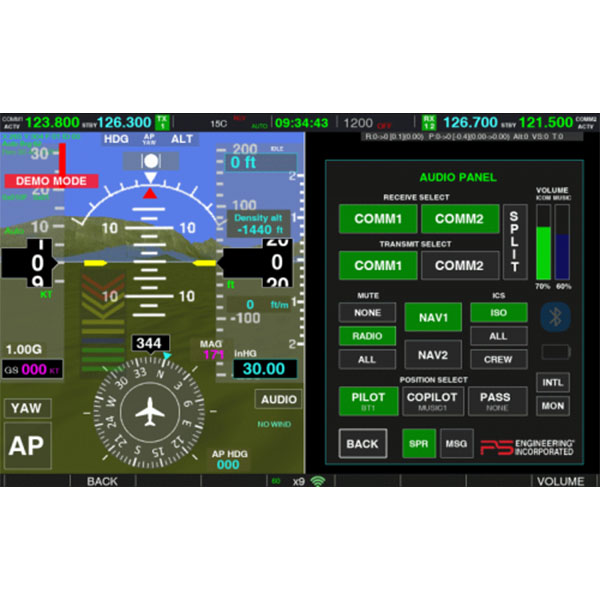

PS Engineering Audio Panels PMA450 series integration support
iLevil autopilot integrated support
LiDar up to 180m (590ft) support
Specifications
Input Voltage: +10V to +28V DCDimensions: 11" x 8" x 2"
Weight: 3 lbs
Display: 10.2" diagonal capacitive touch, 1280x800 resolution (ultra-bright)
Receiver: GPS Neo8
Maximum IAS: 250 Knots
Altitude Range: -1000 ft to +32,000 ft
Vertical Speed Range: 10,000 ft/min (up or down)
Roll Range: 360 degrees
Ports: USB (supports up to 32GB flash drives)
Storage: Built-in SATA drive for extended capacity
Antenna: Magnetic-mount GPS with male SMA connector
Connections: Quick-connect 1/4" pitot, static, and AOA lines
Manufacturer: 360 Avionics Corp.
Country of Origin: Made in Canada
Intended Use: For experimental (homebuilt) aircraft only.
