COMANT COMDAT
ANTENNA (CI 420-420)

$817.00/Each
Quantity
Add to Wishlist
Part# 11-05852
MFR Model# CI-420-420

Overview

Frequencies • GPS 1575.42 MHz / 26.5 dB Gain XM 2332.5-2345.0 /30-34 dB Gain

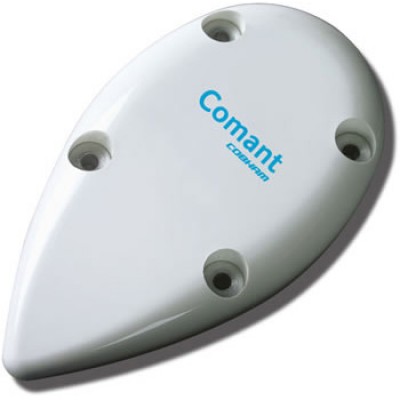

(CI-420-420) ComDat® multifunction GPS and XM Weather antenna. Designed for compatibility with panel mount 26.5 dB gain GPS receivers. Add XM to an existing GPS antenna location without the need for a completely new installation location. Conforms to the popular teardrop footprint standard on many general aviation aircraft and business jets. Certified FAA TSO-C144 for GPS and GPS WAAS Class Gamma 1 equipment. Not compliant for GPS WAAS Class Gamma 2 and 3 applications. Not compatible with most portable GPS receiver systems.

Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately.

Specifications

Drawing

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can the Comant CI 420-420 antenna be shared by two receivers?

The CI420-420 antenna was designed to be connected to one receiver. Any other application is not recommended.
