Avery EFIS System Plumbing Kit

$134.75/Each
Quantity
Add to Wishlist
Part# 12-03284
MFR Model# SA-A2

Overview

The fittings capture the tubing with stainless steel retainers. By suppressing the release ring (around the tubing entry port on the fitting), the tubing is easily removed. Within just a few minutes, you'll be able to disconnect and reconnect tubing. O-ring seals, and maintaining precise tubing diameter during the manufacturing process, ensures a reliable seal.

For Experimental Aircraft ONLY. Applicability and suitability of this kit is the responsibility of the builder.

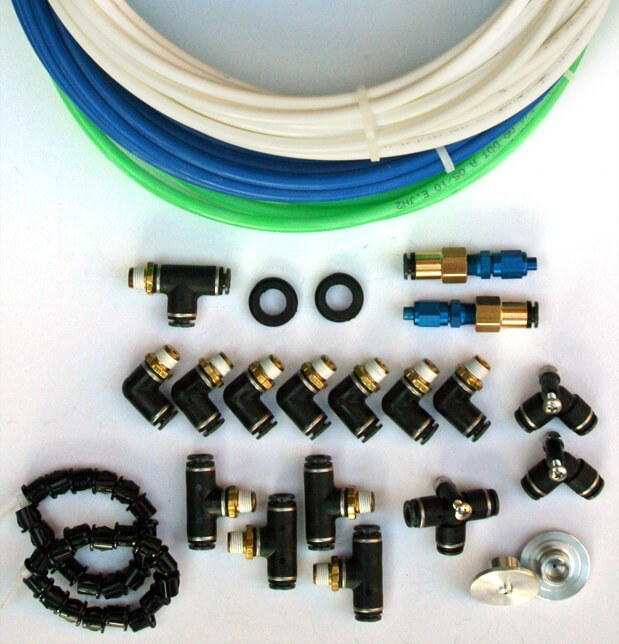

Kit Includes:
    7 - 90° Male Elbow
    4 - Male Branch Tee
    1 - Union Tee
    2 - Union 90°
    2 - Synthetic Rubber Grommet
    30 - Snap Bushing
    2 - Female Connector
    2 - Static Port
    2 - AN Hardware Assembly
    1 - 25' 1/4" Green Tubing (Pitot)
    1 - 32' 1/4" White Tubing (Static)
    1 - 23' 1/4" Blue Tubing (AOA)

Click Here to Enlarge

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Very good kit

Alain M Verified Purchase

EFIS Systems Tool Kit

August 3, 2024

as ordered

Montana A Verified Purchase

EFIS Systems Tool Kit

February 2, 2023

This item does come with the hardware to connect directly to the pitot tubes. You do not need any adapters. Customer service was not able to provide a good answer to this.

Eric C Verified Purchase

EFIS Systems Tool Kit

October 21, 2022

Have not installed this yet but when it came I am glad I laid out the instructions and inventoried it. I was missing a 90* fitting. Very easy to address this with Spruce right after receiving it, the replacement came super fast and I am no where near needing it (still prepping ribs). Might not have been the case if two years from now I noticed I was one short so make sure you inventory this when you receive it. Top quality parts and excellent service on the missing part issue.

Lou
July 10, 2022

You cannot purchase additional push on knees or T fittings without purchasing the whole kit. I bought two kits just to get the required components.

John K Verified Purchase

EFIS Systems Tool Kit

November 20, 2021

The parts are all you would need for a homebuilt. Easy to install fittings tubing. Theinstruction are good but the pictures are not all clear, some are so dark you cannot read them. Overall a good investment.

Nick A
March 26, 2017

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Can this tool kit be used with the Garmin pitot/AOA? Or does it work with only Dynon?

Yes, this tool kit can be used with a Garmin Pitot / AOA system.

Q: Three 1/8-27 ANPT male thread fittings are included to connect the Garmin GSU 25?

Yes. This connects to GSU 25 AOA systems.

Q: Will this connect directly to the metal tube of the pitot probe or do I need an adapter?

Yes, this will fit on the pitot as long as there 1/8 NPT
