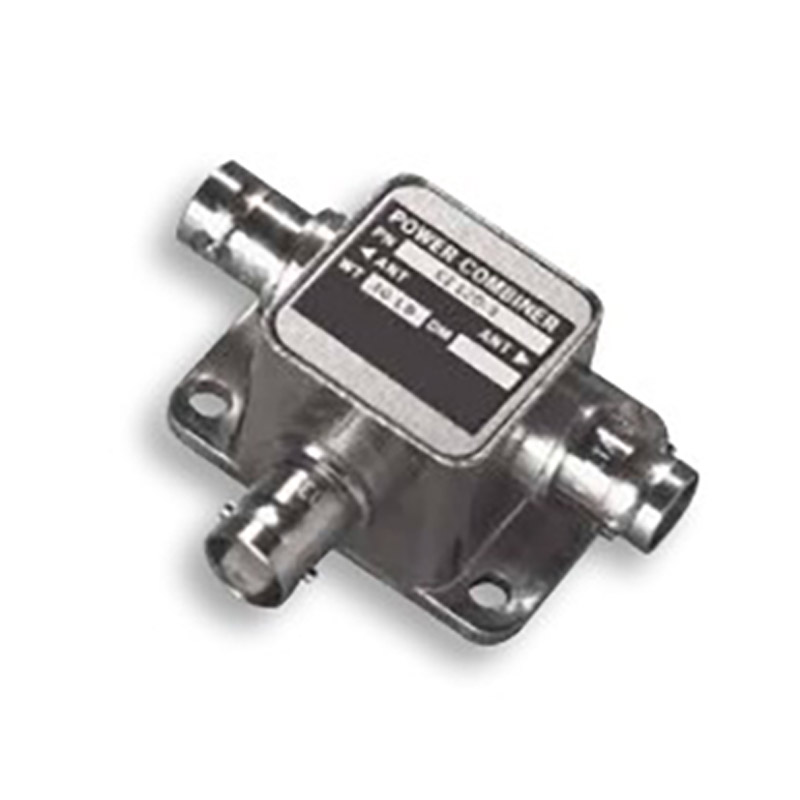

Comant Combiner CI 120-3 Vor/Loc/Gs

$344.00/Each
Quantity
Add to Wishlist
Part# 11-19394
MFR Model# CI-120-3

Overview

Comant’s four through hole combiner with BNC ports. Combines two VOR / LOC / GS antenna signals into a single coaxial cable run for one VHF Nav input. Designed as standard equipment with Comant’s CI 120G/S blade set. Suitable for internal aircraft mounting.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Electrical
  • Frequency: 108 -118 MHz 329-335 MHz
  • VSWR: 1.5:1 Max 1.5:1 Max
  • Power Split: 3 dB 3 dB
  • Isolation (btwn Ports): 20 dB 20 dB
  • Insertion Loss: 1.0 dB 1.0 dB
  • Amplitude Balance: ±0.5 dB ±0.5 dB
  • Impedance: 50 Ohms 50 Ohms
  • Phase (btwn Ports): 180 ±5 180 ±5

  • Mechanical
  • Weight: 0.1 lb
  • Height: 0.97 in
  • Construction: Die Cast Aluminium
  • Finish: Aluminium
  • Connector: BNC (female)

  • Environmental
  • Internal Mounting / DO 160

  • Federal Specifications
  • FAA TSO Part of an approved TSO System

Applications

  • Internal Aircraft Mounting
  • Always consult your installation shop
  • for best application
