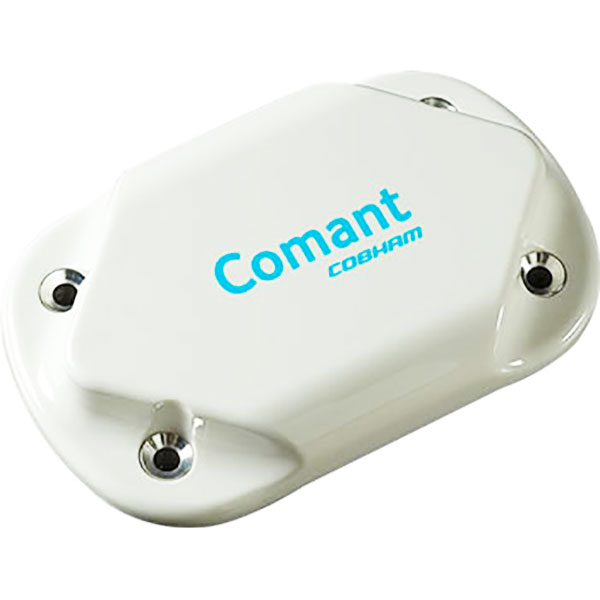

Comant CI-429-410 Comdat Antenna - WAAS GPS/Xm

$1540.00/Each
Quantity
Add to Wishlist
Part# 11-18309
MFR Model# CI-429-410

Overview

Frequencies • GPS 1575.42 MHz / 26.5 dB Gain XM 2332.5-2345.0 /30-34 dB Gain

The CI-429-410 is an FAA TSOd GPS/XM antenna qualified under stringent C190 WAAS requirements. This antenna will operate with an y DO-301 qualified WAAS GPS system providing full Gamma 2 & 3 and LPV capabilities. The XM portion of the antenna will operate with popular panel mounted systems from Garmin and Heads Up.

Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Skydrol resistant radome and nickel plated aluminum base plate
  • Uses the same footprint as the popular ARINC 743
  • Comes standard with a Nitrile O-ring
  • Operates with any DO-301 qualified WAAS GPS system
  • Provides full Gamma 2 & 3 and LPV capabilities
  • GPS 1575.42 MHz/ 26.5 - 32.5 dB gain frequency
  • XM 2332.5 - 2345.0 MHz/ 25.0 +/- 2 dB gain frequency

Specifications

MODEL CI 429-410 COMDAT
Preamp Characteristics
GPS
Frequency
1575.42 +/- 10.23 MHz
VSWR
1.5:1
Polarization
RHCP
Radiation Gain Pattern
Omnidirectional
Impedance
50 Ohms
VHF Characteristics
VHF
DC Voltage
4 to 24 VDC
Impedance
50 Ohms
Mechanical/ Environmental
Weight
8.5 lbs Max.
TSO
C190

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does this product serve as a receiving antenna for satellite calls?

No, we are not aware of this antenna being used in this application.
