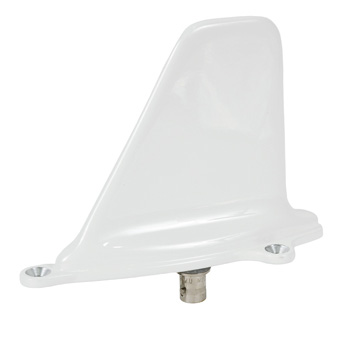

Frequencies Covered Comant CI 105-3 DME/Transponder antenna. Identical to the CI 105 in operating characteristics. Antenna configuration specifically designed for external applications using a three hole flange mounting. Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately. Applications |
MODEL CI 105-3 DME/ TRANSPONDER | |
Electrical | |
Frequency | 960 to 1220 MHz |
Polarization | Vertical |
VSWR | 1.5:1 960 to 1220 MHz |
Radiation Pattern | Equivalent of 1/4 wave stub |
Impedance RF | 50 Ohms |
Resistance DC | Open Circuit |
Power RF | 2.5 KW Peak |
Mechanical | |
Weight | 0.24 lbs. Maximum |
Height | 3.31 in. Maximum |
Material | Molded Radome |
Finish | Polyurethane Enamel |
Environmental | |
Temperature | -54°C to +55°C |
Air Speed | 450 Knots TAS at 25,000 ft. |
Altitude | 70,000 ft. |
Federal Specifications | |
RTCA Environmental | DO-160C |
FAA TSO | C66b, C74c |
