DM C63-1/A Antenna

$420.00/Each
Quantity
Add to Wishlist
Part# 11-02764
MFR Model# DM C63-1/A

Overview

Frequency Range 118-137 MHz

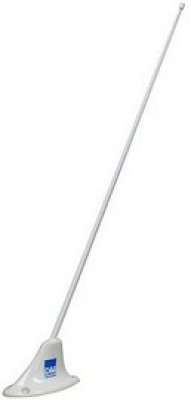

The DM C63-Series antennas are VHF communication antennas designed for high mechanical strength with machine tapered aluminum alloy radiating elements. These vertically polarized antennas cover the frequency range of 118-137 MHz for both transmitting and receiving applications. The DM C63-1/A is designed for mounting on top of the fuselage. All DM C63-Series antennas are supplied with a gasket and a doubler plate. Electrical Frequency Range 118 - 137 MHz VSWR 2.0:1 Polarization Vertical Radiation Pattern Omnidirectional Gain Equivalent to a quarter wave stub Impedance 50 Ohms Power 50 W TSO C37d and C38d Mechanical Weight 8 oz Height 20.50 in. Max Finish White Connectors BNC Female Environmental Per D0160C F2-ABCXXXXXXXXXXXXXXXX

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Drawing

  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the bolt pattern on the DM C63-1/A?

Please see the drawing tab on this product page.
