RAMI AV-529 COM ANTENNA
MFR Model# AV-529
Overview
|

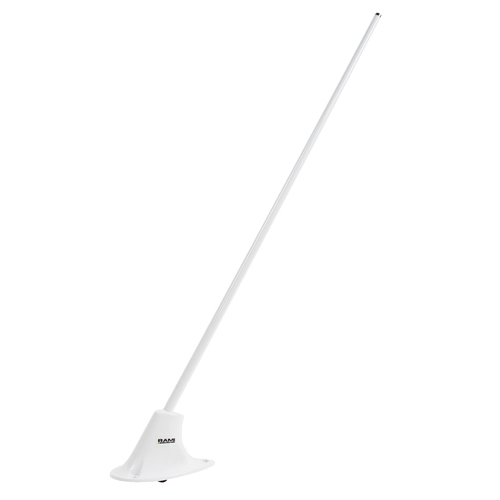

The AV-529 is designed for broadband communications (118-136 MHz). It has a die-cast aluminum base and a uniquely designed radiator encapsulated in a fiberglass whip. The antenna is supplied with a weather-sealing gasket and mounting hardware. The antenna is designed to operate at speeds up to 350 mph and altitudes of 50,000 ft. It has a drag force of 3.43 lb @ 250 mph. |
Specifications
- Application: Airborne Communications
- Frequency: 118 to 136 MHz
- Impedance: 50 Ohms Nominal
- VSWR: 1.8 to 1 Maximum
- Polarization: Vertical
- Pattern: Omni-Directional
- Connector: Type "BNC" Female
- Max Weight: 8 oz
- Max Height: 20-1/4"
- RF Power Capacity: 25 Watts
Reviews
A simple installation and was a perfect replacement for the previous antenna.
This is our go to antenna for many of our customers. Great price and fantastic antenna.
Great antenna and price reasonably.
Q&A
Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Yes, Com antennas are generic and as long as the frequency matches you are fine. All you will need is connectors and coax cable to connect them. The AV-529 has a female BNC out.
The Rami AV-529 Com Antenna has TSO's C37d and C38d.
There are 3 mounting screws included. 2 for the front holes, 1 for the back.
The Rami AV-529 does not include a coaxial cable. It is equipped with a female BNC connector, so a coaxial cable with BNC male connector is needed. We can assemble custom length coax cables to be used with this antenna. Just keyword search " custom coax " on our website for the ordering page.
Please click the link in the overview "Download the product footprint in PDF format". It provides detailed dimensional information.
Yes this is a monopole antenna. This does need a ground plane
The antenna is supplied with a weather-sealing gasket and mounting hardware. You will need to purchase connectors and coax cable separately.
