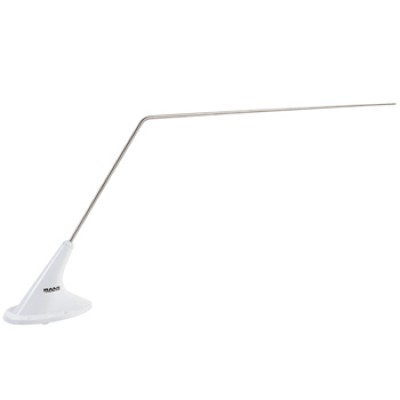

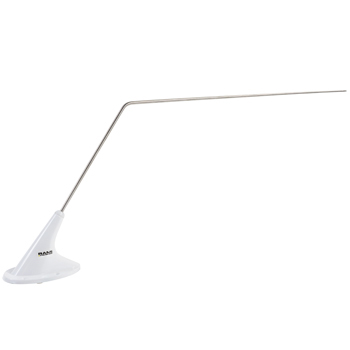

RAMI AV-17 COM Antenna

Select Bundle:
AV-17 Unit OnlyAV-17 + AV-801 WAAS GPS Antenna
Quantity
Add to Wishlist

Overview

The AV-17 is designed specifically for mounting to the underside of an aircraft, providing an excellent radiation pattern for air-to-ground communications. It has a 4-bolt mounting base and a low profile configuration that makes it ideal for helicopters and low-wing aircraft. The antenna is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 0.66 lb @ 250 mph.

Download the product outline in PDF format.

Download the product footprint in PDF format.


California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Application: Airborne Communications
  • Frequency: 118 to 137 MHz
  • Impedance: 50 Ohms Nominal
  • VSWR: 3.0 to 1 Maximum
  • Polarization: Vertical
  • Pattern: Omni-Directional
  • Connector: Type "BNC" Female
  • Max Weight: 8 oz
  • Max Height: 8-3/4"
  • RF Power Capacity: 25 Watts
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Great antenna to mount on the belly of the aircraft. I added a second radio and this is the second antenna of the same type. Works well.

David L Verified Purchase

RAMI AV-17 COM ANTENNA TSO

November 16, 2021

Good product and install well if you carefully read the instructions

Michel R Verified Purchase

RAMI AV-17 COM ANTENNA TSO

June 2, 2021

The AV-17 came with a mounting kit that included all the hardware and a back plate. EZ installation and it works great.

True F
September 17, 2019

Haven’t had a chance to verify operation yet. Fit-up and appearance are excellent. This antenna replaced a similar antenna as part of an avionics upgrade that is not yet finished.

Craig N
September 6, 2019

A very nice and well made com antenna, very straight forward installation, but be aware that in the accessories it surguests that you reguire a Rami installation kit 11-14059. The com comes with the kit so do not waste your money like I did.

John (
January 6, 2018

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is the RAMI AV-17 com antenna FAA TSO'd?

Yes, RAMI antennas are TSO'd.

Q: Do I need to purchase the installation kit as well for the AV17 antenna? Whats in the installation kit? Will I need a male BNC connector at the end of my RC142 cable to connect to the AV17?

No, the items in the installation kit are included with purchase of the AV17. A male BNC connector will be needed on the coax cable.

Q: Is it OK to paint the body of this RAMI AV-17 Com antenna?

No. We do not recommend painting any antenna.

Q: Can I use this antenna with the FLIGHTLINE 760A PANEL MOUNT COM RADIO?

Yes, you are able to use this bellymount antenna.
