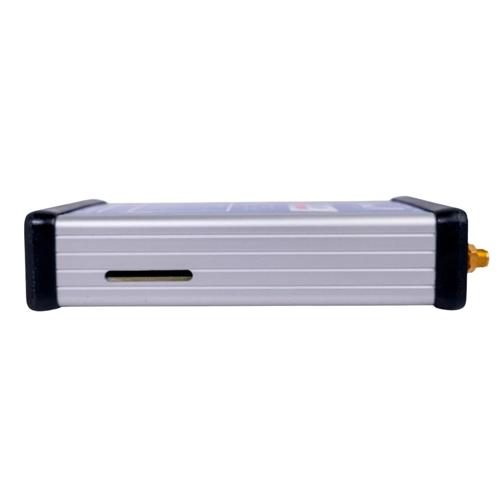

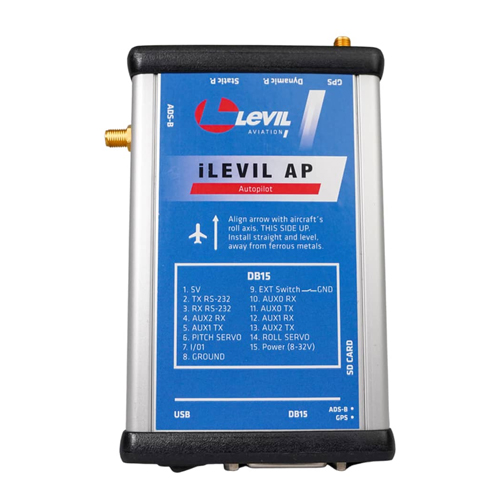

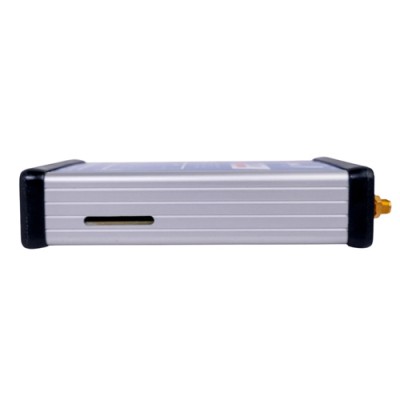

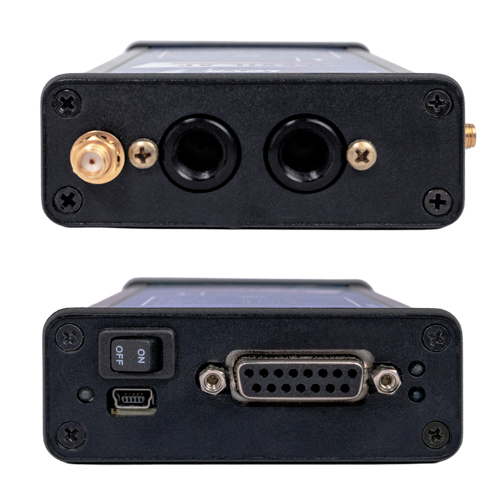

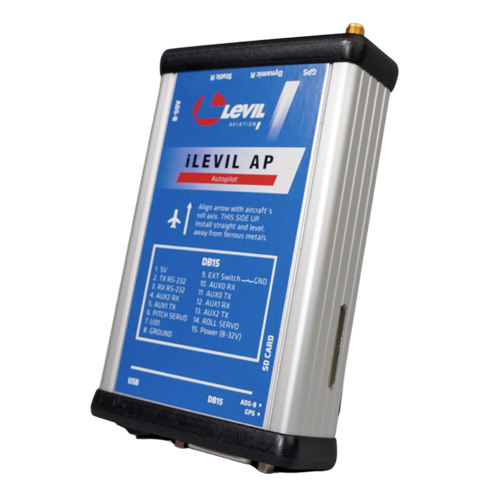

iLevil AP Autopilot Module
MFR Model# 105-01-01
FREE Shipping
- JUMP TO
- Overview
- Features
- Specifications
- Reviews
- Q&A
Overview
|
The iLevil AP Autopilot is an all-in-one avionics solution, integrating several sensor modules to provide ADS-B weather and traffic information, GPS navigation, AHRS, and Data Recording. The Autopilot feature uses the AHRS data to determine aircraft attitude and controls small trim tabs to maintain wings level or maneuver the aircraft smoothly to desired heading and altitude. The iLevil AP can be used as a portable or permanent-mount instrument. It integrates static and dynamic pressure transducers, which make available accurate indicated airspeed and pressure altitude obtained from the pitot-static system, ultimately offering a "six-pack" solution displayed on a tablet. Version includes flight module only. |
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Features
- Dynamic and static port for indicated airspeed and altitude
- WAAS GPS
- High-performance AHRS and solid-state technology (Capable of driving synthetic vision displays)
- ADS-B receiver for weather and traffic
- GRT EIS Engine Monitor Connectivity
- Records flight data with SD card
- 360-degree compass rose heading indicator that displays magnetic track or magnetic heading (magnetic heading accuracy depends on instrument installation)
- Heading Bug
- Heading Mode uses the internal compass and GPS to hold a heading
- Altitude Mode climbs to, descends to, or holds an altitude
- Vertical speed indicator
- Turn and slip indicator
- Flight Plan Steering follows a flight plan by using an external navigation app
- Hold function will automatically keep the airplane flying at the current heading and altitude
- Auto Envelope Protection, when the autopilot is off, trim tabs are still active. The system will correct for excessive or unwanted pilot inputs beyond a roll or pitch limit
- Auto Trim, since the system works with trim tabs, auto trim is built-in to the autopilot. No additional installation required. The airplane will always be in trim following autopilot disconnect
Specifications
- Weight: 11 oz
- Dimensions: 3.2 x 5 x 1.1 in.
- Power input: 8-32 VDC main bus, 5 VDC internal battery by USB or serial port
- Backup battery: Lasts 5.5 hours
