Flightcam360 Blind Spot Eliminator

$749.95/Each
Quantity
Add to Wishlist
Part# 11-08138
MFR Model# MC360-MVP-LT

Overview

Aircraft Camera
4 Camera Views

Flightcam360 Blind Spot Eliminator, Great for Tail Dragger type airplanes, Can be placed anywhere on the aircraft to increase visibility

Blind Spot Eliminator

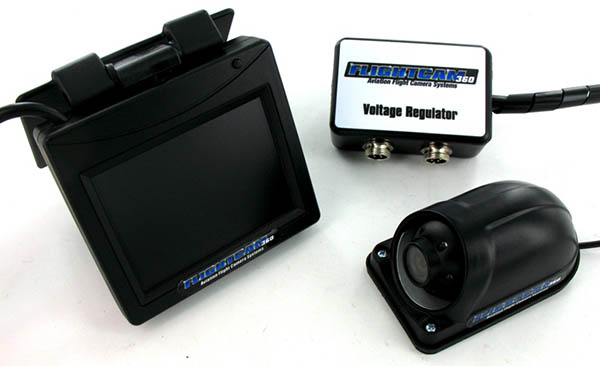

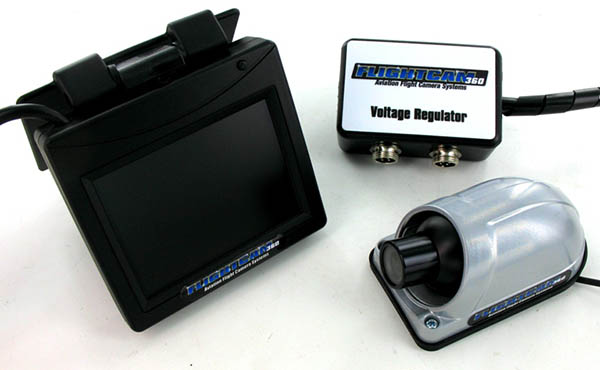

Package Contents:

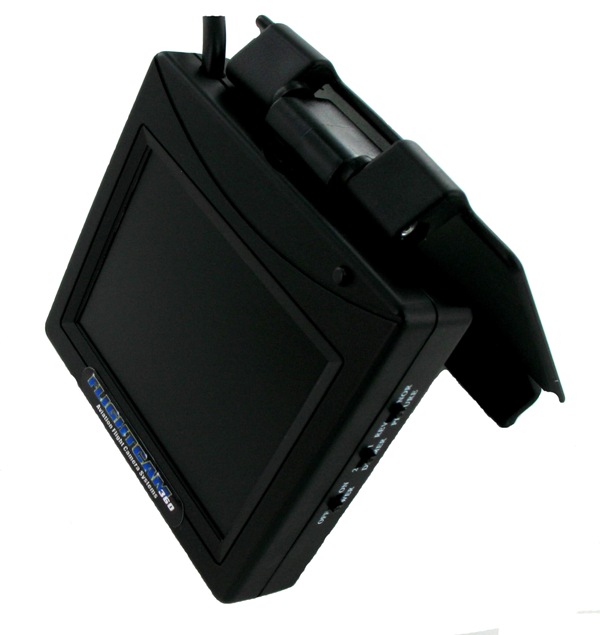

    3.5 flip down Color LCD Monitor (1)
    12-32v input Voltage Regulator (1)

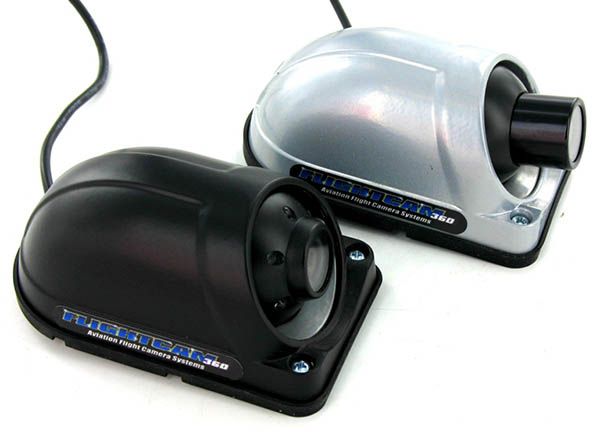

    Sony 550 CCD lowlight Color Camera (1)
    Optional IR camera 30ft illumination range
    15ft camera cable
    POD swivel mount (1)

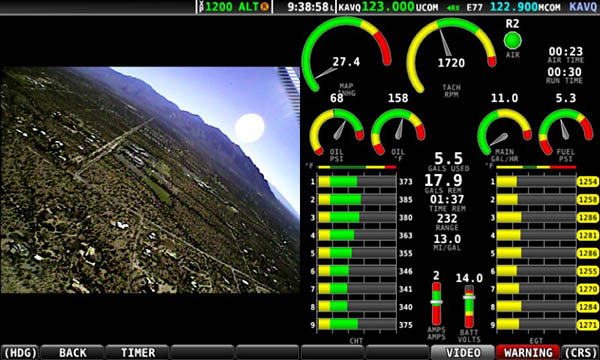

    EFIS compatible
    Garmin G500
    Dynon

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: My airplane was converted from a 12v to a 24v system, so would this system work without any problems? The web page says 12-32v

Yes, a input voltage regulator is included which will work with 24V systems.

Q: The viewing angle is important to me. I need at least 120 degrees or better. Will this do it?

The view angle comes set by the factory at 90 degrees but can be changed in the field to any of the following: 110, 135, 70, 60 or 40.

Q: Will the Flightcam360 Blind Spot Eliminator camera work with Garmin G3X?

Yes, this will work with the G3X.

Q: What is the video format output? Is it Composite video (CVBS PAL)?

This unit is standard def (composite video).
