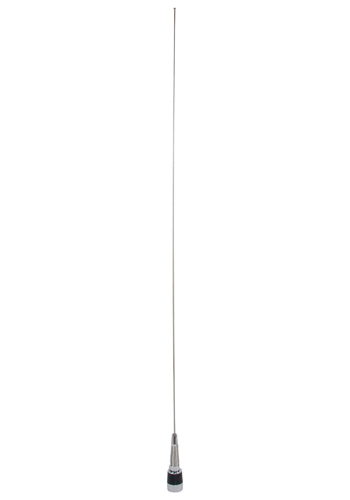

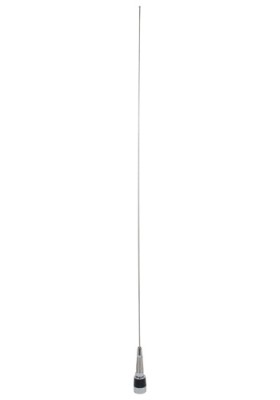

RAMI AV-7M Magnetic 5/8 Wave Vehicular COM Antenna

$213.00/Each
Quantity
Add to Wishlist
Part# 11-14036
MFR Model# AV-7M

Overview

ANTENNA/VHF communications, whip type, magnetic base, 118-137 MHz, includes: 12' cable with attached BNC Connector.

Antenna with magnetic base; 12' cable with "BNC" connector attached.

The AV-7 is a high performance vehicular antenna for use on all surface vehicles where communications on the aircraft VHF COM frequency band is required. Heavy duty constructed with a tapered 17-7PH stainless steel whip and spring mount. All exposed fittings are chrome-plated brass or stainless steel. Mounting is easily achieved on rooftop, cowl, fender or other suitable location via a magnetic base. The antenna comes pre-tuned to operate in the aircraft VHF COM frequency band of 118-137 MHz.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Application: Ground Vehicular VHF COM Communications
  • Frequency: 118 to 137 MHz
  • Impedance: 50 Ohms Nominal
  • VSWR: 1.5 to 1 Maximum
  • Polarization: Vertical
  • Pattern: Omni-Directional
  • Antenna/Base Interface Connection: NMO
  • Base Mount Connector: BNC Male
  • Max Height: 45”
  • RF Power Capacity: 150 Watts
