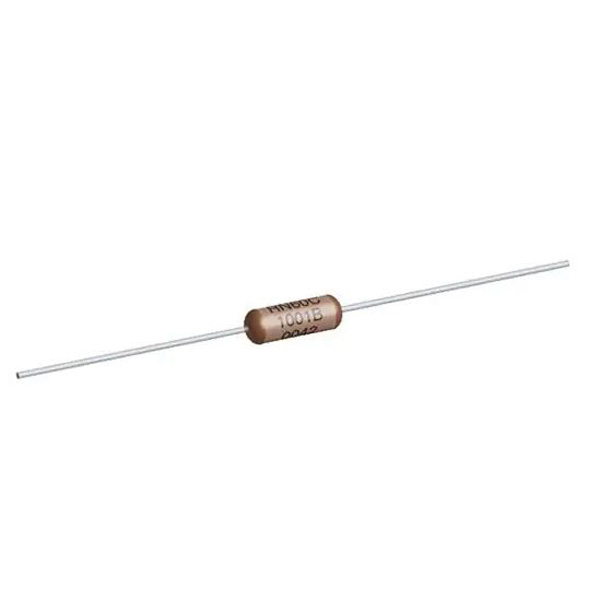

Vishay Dale Resistor - Metal Film - 120 0Hms

$0.34/Each
Quantity
Add to Wishlist
Part# 11-17470
MFR Model# RN60D1200FB14

Overview

Vishay Dale Resistor 120 OHMS Metal Film.

Note: For Garmin G5 Certified Aircraft.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Very low noise (-40 dB)
  • Very low voltage coefficient (5 ppm/V)
  • Controlled temperature coefficient
  • Flame retardant epoxy coating

Specifications

  • Product Category: Metal Film Resistors - Through Hole
  • RoHS: N
  • Series: RN
  • Resistance: 120 Ohms
  • Power Rating: 250 mW (1/4 W)
  • Tolerance: 1 %
  • Temperature Coefficient: 100 PPM / C
  • Minimum Operating Temperature: - 65 C
  • Maximum Operating Temperature: + 175 C
  • Voltage Rating: 300 V
  • Diameter: 3.68 mm
  • Length: 8.74 mm
  • Termination Style: Axial
  • Type: MIL-R-10509 Qualified Precision Film Resistor
  • Mounting Style: PCB Mount
  • Lead Diameter: 0.64 mm
