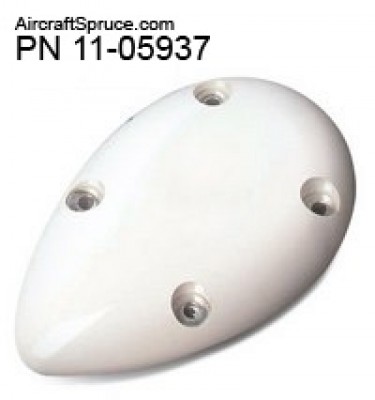

Wsi Weather/Sirius Radio Antenna

$720.00/Each
Quantity
Add to Wishlist
Part# 11-05937
MFR Model# AAA-TSR-01A

Overview

The AAA-TSR-01A is an active antenna that operates with all new WSI InFlightŪ capable receivers. The antenna receives Sirius Satellite Radio broadcasts to enable the WSI weather service. It was designed specifically to suppress interference from ground based signals. Its proprietary design allows for optimum performance while the aircraft is turning. The antenna has been thoroughly tested and meets all of the RTCA DO-160E requirements.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Specifications

  • Frequency: 2.32-2.3325 GHz
  • Polarization: LHCP
  • Impedence: 50 Ohms
  • Active Gain: 31 dB
  • Noise Figure: .9 dB Max
  • VSWR: 2.0:1
  • Operating Temp: -55C to +70C
  • Survival temp: - 55C to +85C
  • Altitude: 55,000 ft.
  • Weight: 113 gm
  • Dimensions: 4.6L x 2.8W x .7H
  • Color: White
  • Connector: TNC female
  • DC input is 3.6-7V
  • DC current: 80 mA TYP
