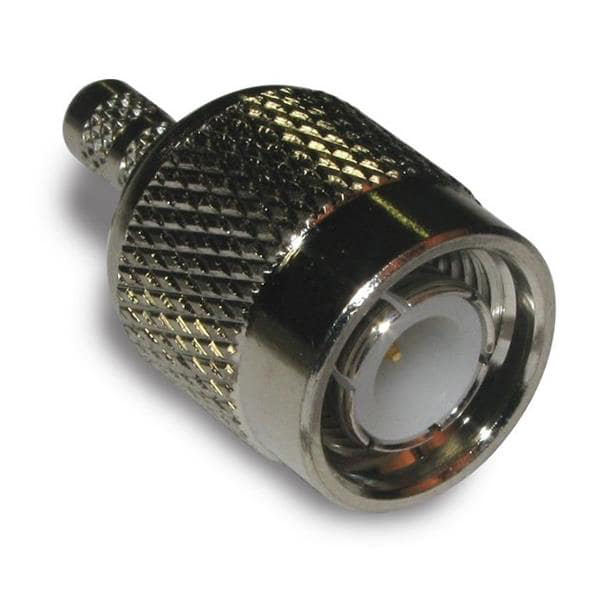

Amph enol TNC 400 Straight Plug Standard Cable

14 Reviews 6 Answered Questions
$2.70/Each
Quantity
Add to Wishlist
Part# 11-15369
MFR Model# 122372

Overview

RF Connectors / Coaxial Connectors TNC STRAIGHT PLUG STANDARD CABLE.

Amphenol RF TNC Threaded Connector Series are miniature, threaded weatherproof units with a constant 50Ω impedance that operate from 0-11GHz. There are two types of TNC connectors: Standard and Reverse Polarity. Reverse polarity is a keying system accomplished with a reverse interface, and ensures that reverse polarity interface connectors do not mate with standard interface connectors.Many TNC connectors are recognized under the component program of Underwriter's Laboratories and have undergone stringent testing from an independent laboratory.

Specifications

  • Product Category: RF Connectors / Coaxial Connectors
  • Manufacturer: Amphenol
  • RoHS: RoHS Compliant By Exemption Details
  • Product: Connectors
  • RF Series: TNC
  • Gender: Plug
  • Impedance: 50 Ohms
  • Maximum Frequency: 11 GHz
  • Termination Style: Cable - Crimp
  • Orientation: Straight
  • Mounting Type: -
  • Cable Type: RG-55, RG-142, RG-223, RG-400
  • Packaging: Bulk
  • Body Finish: Nickel
  • Body Material: Brass
  • Body Style: Straight
  • Brand: Amphenol RF
  • Contact Material: Brass
  • Contact Plating: Gold
  • Contact Termination: Crimp
  • Coupling Mechanism: Threaded
  • Isolation Type: Not Isolated
  • Mating Cycles: 500
  • Series: TNC
  • Factory Pack Quantity: 1
  • Voltage Rating: 500 V
  • Unit Weight: 0.493835 oz

Documents

  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Submit a Review

Magaero L Verified Purchase

AMPHENOL 122372 TNC MALE RG 400
June 29, 2022

Quality product.

William J Verified Purchase

AMPHENOL 122372 TNC MALE RG 400
April 5, 2022

Highly recommended! Best for RG400!

Pavel M Verified Purchase

AMPHENOL 122372 TNC MALE RG 400
January 12, 2022

Larry R Verified Purchase

AMPHENOL 122372 TNC MALE RG 400
December 2, 2021

Good

Charles H Verified Purchase

AMPHENOL 122372 TNC MALE RG 400
September 2, 2021

It is what it is: good quality TNC from Amp. The price from Spruce is as good or better than from any other supplier Ive found. Ships quick. Works as intended.

Ben
November 30, 2020

I needed a specialized coax connector for a critical application. It was 5:35PM and shipping department was closing at 6PM. I needed these parts the next morning to complete my assignment. The person who took my order walked it to shipping and I received my parts the next morning. Thank you very much!

Gary L
September 3, 2020

Good quality connector.

To Y
May 3, 2020

Great to connect GA35 GPS Antena to GTX335 Garmin transponder on a RG400 coax.

Richard N
March 27, 2020

Perfect! Easy to use, and doesnt require the multi-thousand dollar crimpers. Worked great for my ADS-B install.

Cris A
February 20, 2020

Q&A

Submit

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this the best connector to use with the Garmin GA35 Antenna? If not, which connector?

Yes, the GA35 uses a TNC style connector. An alternative would be part number 11-04447.

Q: Will this connector work with the Trig TA70 antenna?

Yes. The TA70 GPS antenna will require a TNC male connection.

Q: Is this the proper connector for the Garmin GTN650 GPS connection and for the Garmin GPS?

Yes, a standard TNC male is required for interconnecting the WAAS GPS antenna to the Garmin GTN 650.

Q: Is there a female version of this connector, need to splice together my transducer cable that got cut in two.

Take a look at Part# 11-17224. It is a female TNC straight crimp jack. If you need to splice some wires together consider looking at our Butt splices.

Q: Is this a dual crimp connector? Or does the center conductor need to be soldered?

This is a dual crimp connector.

Q: Will this connector work with RG-58 coaxial cable ?

No, this works with RG-55, RG-142, RG-223, RG-400.
