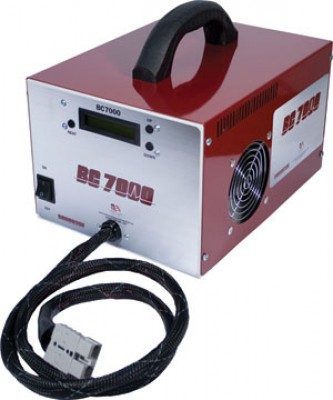

BC-7000 Battery Capacity Tester

$3285.00/Each
Quantity
Add to Wishlist
Part# 11-10483
MFR Model# BC-7000

Overview

From Concorde, the BC-7000 is similar to the BC-6000 with the benefit of adjustable current loads in smaller increments and the ability to use on Lead Acid or Ni-Cd batteries. The unit is AC powered.

Fully automatic testing for 12V AND 24V aircraft batteries. Universal AC power input 85-265Vac (47 to 63Hz). Constant current load adjustable in 0.1 Amp increments from 0.5 to 15Adc. Constant current load adjustable in 1.0 Amp increments from 15 to 50 Adc. 10mv voltage resolution. Displayed battery capacity (CI) %. LCD Display. USB 2.0 port for test report print out. Overtemperature protection. Audio alert when capacity test is complete or malfunction of unit

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Tests both 12V and 24V lead acid batteries with capacity ratings from 0.5 AH to 50 AH
  • Adjustable End Point Voltage (EPV)
  • Battery discharge mode to 1V EPV
  • Adjustable Constant Current loads in 0.1 Ampere increments from 0.5 Ampere to 15 Ampere plus or minus 1.5%
  • Adjustable Constant Current loads in 1.0 Ampere increments from 15 Ampere to 50 Ampere plus or minus 1.0%
  • Universal AC power input 85~264vac (47 to 63Hz)
  • 10mv voltage resolution
  • Overtemperature protection
  • Audio warnings for completion of capacity test or a malfunction of the process
  • Ring terminal connector and a elcon connector included

Specifications

  • 10 LBS / 4.5 KG.
  • Length 12” (30 cm). Width 9” (23 cm). Height 7.5” (19 cm).

Documents

  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: How does this BC-7000 battery capacity tester connect to the battery?

We have added the install instruction PDF to the Documents tab of this webpage. Please download and review it there.
