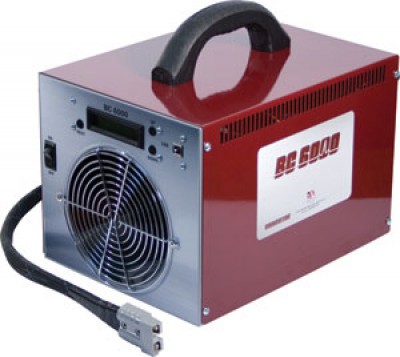

BC-6000 Battery Capacity Tester

Add to Wishlist
Part# 11-10482
MFR Model# BC-6000


From Concorde, the BC-6000 is a portable, light weight unit similar to the BC-5000 with an added feature for printing test reports. Plugged into a USB port, the B-6000 will create test reports directly from your computer. Tests both 12V and 24V lead acid batteries with capacity ratings from 10 AH to 55 Adc. Powered by the battery being tested - No AC power required. LCD display. Overtemperature protection. Audio alert when capacity test is complete or malfunction of unit. USB 2.0 port for test report print out.
California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm -


  • Tests both 12V and 24V lead acid batteries with capacity ratings from 10 AH to 50 AH
  • Constant current load in 1 Amp steps
  • Battery powered operation. No AC power required
  • LCD display
  • 50 MV voltage resolution
  • Overtemperature protection
  • Automatic audio warning upon completion of capacity test


  • 10 LBS / 4.5 KG Kg.
  • Length 12 (30 cm). Width 9 (23 cm). Height 10 (25 cm).


The equipment was ok

Henry C Verified Purchase


July 6, 2021

At Propellerhead Aviation we test all batteries for integrity and proper capacitance. The BC-6000 makes it really easy and provides a clear report showing the result of components performance. This graphic report is very handy when dealing with customers that want verification of their test. This unit is super easy to operate and is well built.

Bill B
May 11, 2017


Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does the BC-6000 battery capacity tester come with a calibration certification?

Last page of the hand book that comes with every unit The units are calibrated from factory then need to be re calibrated ever year after first use.
