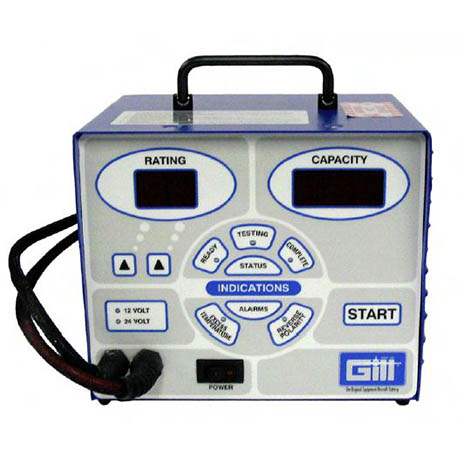

Gill TCt-1000 12V/24V Capacity Tester

$2849.00/Each
Quantity
Add to Wishlist
Part# 11-03302
MFR Model# 60260

Overview

The TCT -1000 Battery Capacity Analyzer has been designed to perform automatic capacity testing of 12 and 24 Volt lead-acid batteries. This unit is capable of accurately measuring the capacity of a fully charged battery with a rating between 10 and 59 amphours. It is self-contained and easy to operate. The load tester will display, in percentage, the conformance to the battery’s one hour rating.

Reviews

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Will this tester work on a gell cell battery

The unit is designed for regular or sealed lead acid batteries. No information how well it will work on a gell cell battery.

Q: Does the Gill TCT-1000 12v / 24v Capacity Tester work on both 110v or 220v?

Per the manufacturer: Neither. This product gets it power for the batteries it is testing. So either 12v or 24v.

Q: Will this tester work on Concorde batteries?

Yes, the Teledyne Battery tester will work on a Concorde battery.

Q: Does the GILL TCT-1000 12V/24V CAPACITY TESTER require annual re-calibration?

Yes, this does require yearly re-calibration.

Q: Can the annual re-calibration on the Gill TCT-1000 capacity tester be accomplished in the field?

Yes, it can. Please refer to the instructions on this in the Documents tab.

Q: Is the unit also called a High Rate Discharge Tester?

Yes, it is used to discharge batteries and registers the capacity of the batteries.

Q: Will this Gill TCT-1000 test a 3.0 amp battery?

Per Gill: We have only tested this with Gill batteries and we do not make a 3.0 amp battery. We have no data whether this will work on this type of battery.

Q: Does this unit come with an adapter for quick-disconnect receptacles, such as the MS3509?

This does come with a connector. You can review all that comes in this in the Owners Manual (PDF) under the documents tab. Refer to page 7 for the parts list and diagram of the parts.
