Deklin BNC Tray Adapter With Snap Ring

$33.85/Each
Quantity
Add to Wishlist
Part# 11-17577
MFR Model# DBA-600

Overview

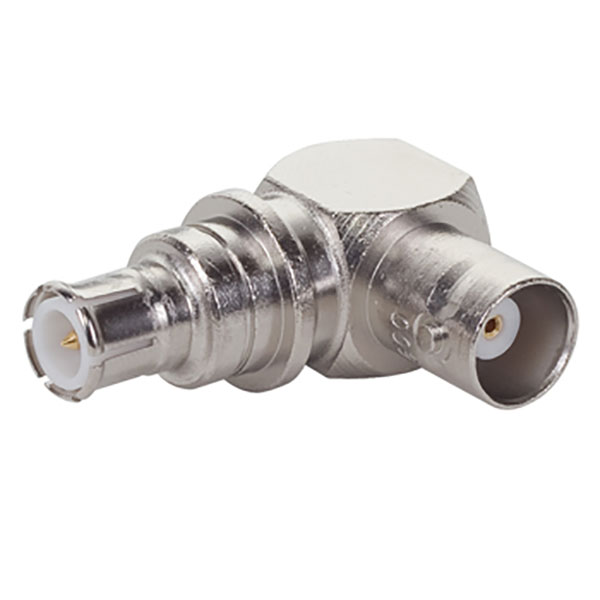

Right angle, BNC tray RF adapter.

California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Features

  • Using the Deklin Technologies DBA-600 BNC Tray Connector in place of the solder type tray connector will save precious time during installation and also troubleshooting. Designed to fit Bendix/King Silvercrown and other trays that currently use the solder type connector, the DBA-600 is made with high quality precision nickel body and a Gold plated center conductor.

Specifications

  • 50 ohms
  • Gold-plated, beryllium copper center contact
  • Teflon insulation material
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Easy to use good quality product. Was replacing the old coax in my plane, the secondary radio had the old style soldered connections--this is a direct and easy replacement for that. Good stuff.

Stephen M Verified Purchase

Deklin BNC Tray Adapter With Snap Ring

August 16, 2024

Very easy install, perfect fit to replace old tired solder connection on my legacy radio tray

Thomas F Verified Purchase

Deklin BNC Tray Adapter With Snap Ring

March 28, 2024

Exactly what i needed to update my tray connector

Terence K Verified Purchase

Deklin BNC Tray Adapter With Snap Ring

September 19, 2023

Use this instead of the solder fitting in the KT74 or Trig TT31 install kit. Way easier.

Bryan E
March 9, 2022

good product , very fastest

Kittisak P Verified Purchase

Deklin BNC Tray Adapter With Snap Ring

October 28, 2021

They fit well, and it is a hell of a lot easier than making a cable fitting one which actually cost more than these do and is a pain in the butt to make up. To bad I cant find the old straight out ones (not 90 degrees) anymore they should be about half this price but just cant be found.

Jaffe L
January 30, 2021

This is THE solution for old racks with solder-type antenna connectors. Especially the ones that just cant use RG400.

Vernon R
November 9, 2020

Q&A

Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: This one has a male end. That is fine for the Comm connection in my tray. I also need one like it with a female end in the tray area. That is for the NAV connection in my MX-385 tray. Is there such a part?

No, this is the only option the manufacturer has for the adapter.

Q: Will this fit in an Icom 210 tray?

Per the manufacturer, yes this should work.

Q: Will this fit in an Avidyne IFD 540 tray?

No the IFD 540 uses a #4 Amphenol RF connector.

Q: Will this work in place of the RF adapter used in the Garmin GTX327?

Yes, The GTX-327 uses an RF connector/BNC.

Q: Does this Deklin BNC connector come with snap ring?

Yes, it does.
