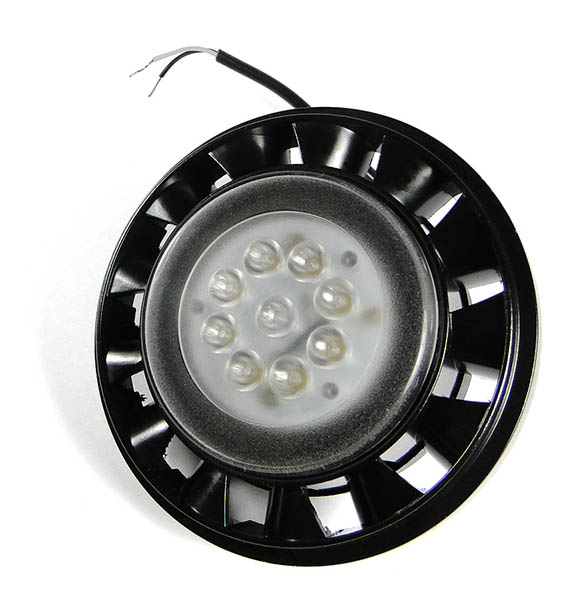

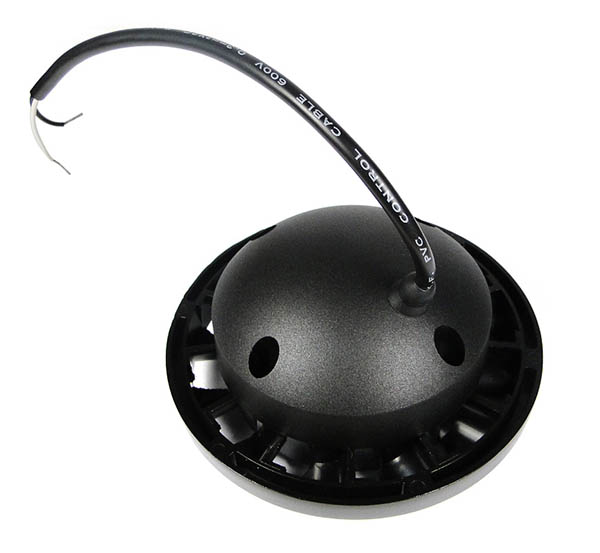

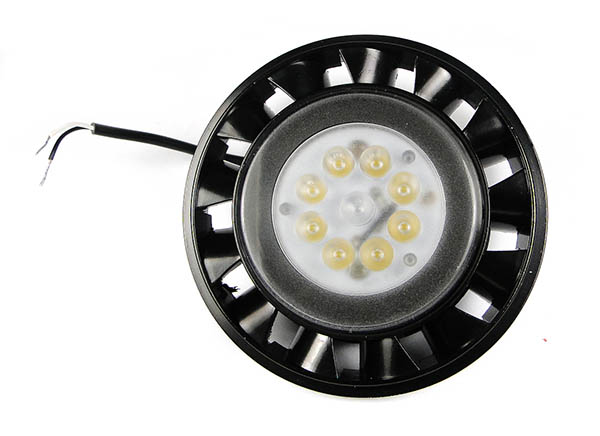

AML Q-4509 LED PAR 36 Landing / Taxi Light

Add to Wishlist
Part# 11-11513


LED Q4509(Non-Polarity Applicable from 9V-36V), approximately 15,000 lab life hours, specialized structure for heat emission.
California Prop 65 Warning Symbol

WARNING: Cancer and Reproductive Harm -


  • Specialized structure for heat emission
  • High brightness (960LM) at low temperature: The temperature of lamp housing stays under 50C even after continuous lighting for two hours.
  • Non-polarity , applicable from 9V~36V

Electrical Characteristics

  • Volt: 13.0
  • Lumens: 960
  • Average Life: 15,000 hours
  • Frequently Purchased With
  • Customers Also Viewed


these bulbs have failed in less than a year in service. I claimed warranty on the first 2 and now 6 more have failed. There is also an issue with too much air flowing through the bulb outer ring for my use. you get what you pay for

Okanagan M
November 28, 2018

I had purchased two of these low priced units, and with the slightest jar or impact to them... They fell apart internally, the lense cover dropped off, with no means of getting to the problem. As others have stated, you get what you pay for, better off with a higher quality product.

John E
May 24, 2020


Please note, Aircraft Spruce's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Does this lamp hook up to existing wiring if previous lamp was a incadescent lamp?

Yes, it just needs to be wired into the existing power supply.

Q: What is the diameter of this AML Q4509 PAR 36 LED taxi / landing light?

This is a PAR36 lamp, which is 4.25" in diameter.

Q: Is this lamp FAA-PMA, for use on certificated aircraft?

Per the manufacturer: No, the AML Q4509 light, part number 11-11513, is not approved for certified aircraft.

Q: What is the degree beam spread on this AML Q-4509 LED light?

Flood 60 degree, Trapezoidal 30 degree, Spot 18 degree.

Q: How many Amps does the AML Q-4509 LED landing / taxi light draw?

It is 13v, 100w, and pulls about 7.69 amps.
